Dama HDM4000H 2 Post Lift
Dama HDM4000H 2 Post Lift
A service lift with base frame ideal for a substantially level but poor quality floor, the base frame give strength and structure to the installation and enables the lift to have a lifting capacity of 4 tonnes.
The 4000H comes in either single or 3phase and complete with 4 x 3 stage arms and 80mm riser extension pads.
Price includes delivery and installation.
Features
- 4T capacity
- Floor installation
- 2 Cylinder & chain driven
- Synchronization steel rope
- Electromagnetic lowering valve
- Electromagnetic safety lock
- Electrical safety devices for balancing cables and maximum height
- Three-stage long arms
- Extension pads included
- Support blocks included
Technical Specification
| Maximum Lifting Weight | 4000Kg |
| Lifting Time | 45sec |
| Lowering Time | 45sec |
| Net Weight | 610kg |
| Power Source | 230V / 1ph / 50Hz / 2.2KW 400V / 3ph / 50Hz / 2.2KW |
| Warranty | 24 Months |

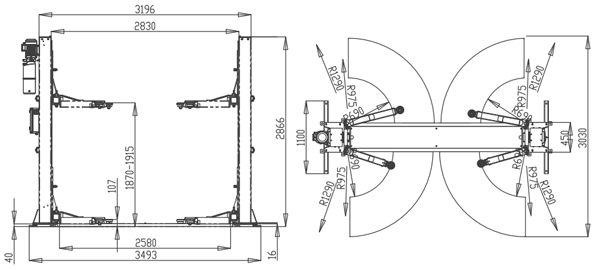

Drawings
Downloads
