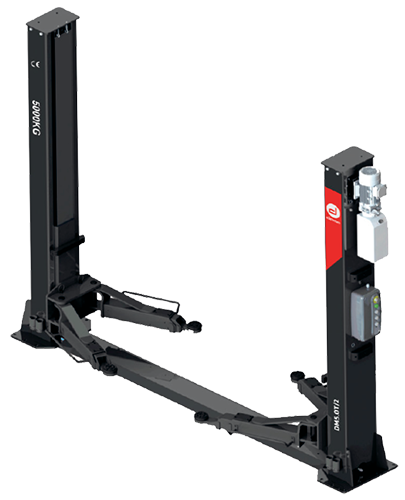

Dama HDM5.0T/2 2 Post Lift
Dama HDM5.0T/2 2 Post Lift
Building on the success of the HDM5.0t/1 the /2 has been developed and honed to offer a superb lift for garages that need to carry out repairs on 4x4s, larger vans & motorhomes. The semi base design offers a small cover between posts and has a smaller outside width but larger internal width. Needing no overhead bars the lift is completely clear above which is ideal for working on varying sizes of vehicle and also perfect for garages with restricted height. All backed by our 2 year parts and warranty. The HDM5.0T/2 has triple extending arm that have an impressive reach from 890mm to 1700mm on each arm and pick up pads that start at 110mm and adjust to 150mm. A set of 70m and 100mm pad extensions are supplied as standard necessary to reach high chassis on 4x4 and vans
Available in 3 phase only
Price includes delivery and installation.
Features
- 5t lifting capacity
- Electro hydraulic operation
- Semi base design with side braces
- Electronic lock release
- Includes 70mm & 100mm Extensions
- Triple extended arms 890mm to 1700mm
- 2767mm overall width
- Lifting time 45 seconds
- Lifting range 110mm-1910mm
Technical Specification
| Maximum Lifting Weight | 5000Kg |
| Power Source | 400V / 3ph 3.0Kw |
| Warranty | 24 Months |

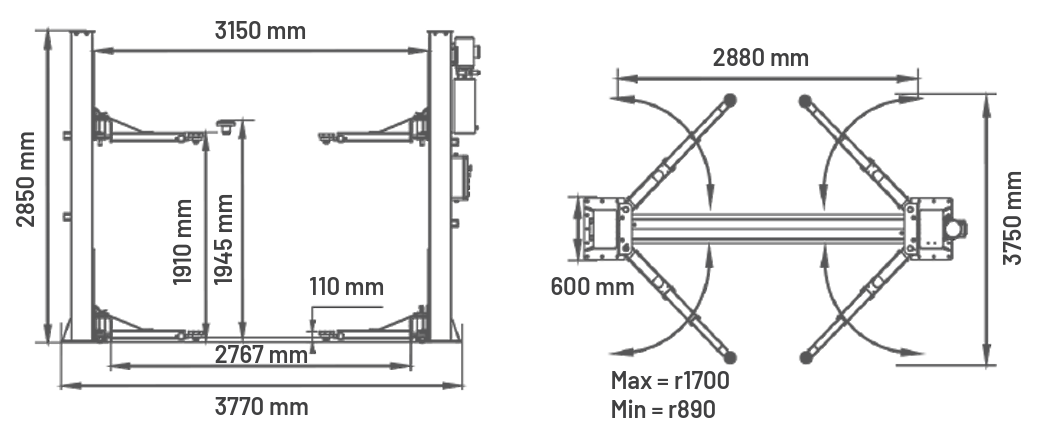

Drawings
Downloads
