Bradbury HA2403G 2 Post Vehicle Lift
Bradbury HA2403G 2 Post Vehicle Lift

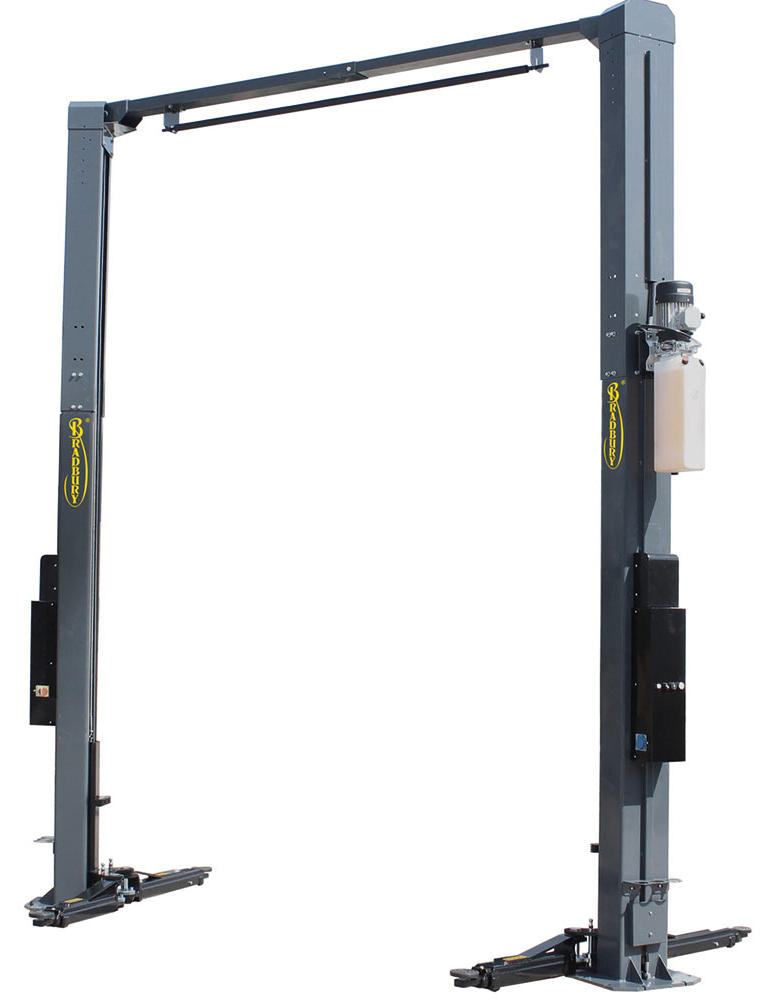

The Bradbury HA2403G Series of Electro-hydraulic Two Post Lifts feature a 4 tonne asymmetrical post design with an overhead gantry.
Suitable for cars and vans (excluding LWB) this fully baseless lift provides the user with unrestricted space underneath the vehicle being lifted.
Three stage arms all round and a low minimum height of just 95mm (adjustable up to 140mm).
Two models that are available in this series :
- HA2403GN – Narrow version – 2522mm drive through width / 4262mm overall height
- HA2403GW – Wide version – 2722mm drive through width / 4012mm overall height
Technical Specification
| Lifting Capacity | 4000kg |
| Lifting/Lowering Time | 30 seconds |
| Minimum Height (pad) | 95mm - 140mm |
| Maximum Height | 1825mm - 1870mm |
| Front Minimum/Maximum Arm Lengths | 640mm / 1145mm (GW) / 590mm – 995mm (GN) |
| Rear Minimum/Maximum Arm Lengths | 880mm / 1560mm (GW) / 710mm – 1275mm (GN) |
| Motor Size | 3 Phase |
| Overall Height of Lift | 4012mm (GW) / 4262mm (GN) |
| Operation | Electro-hydraulic |
Call us now on 01823 328530 for more details
