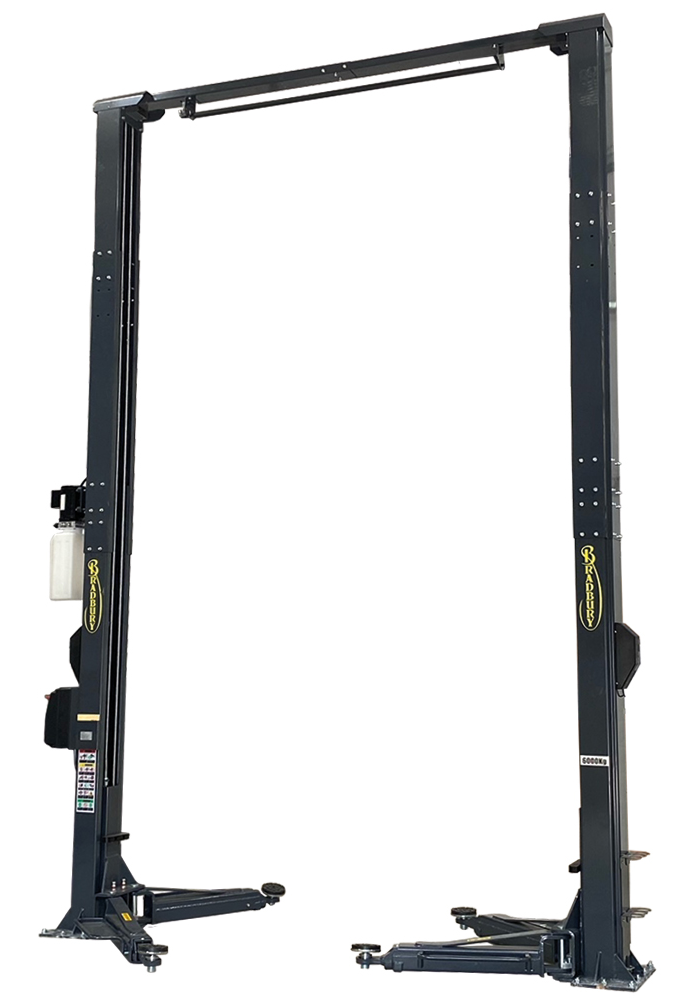

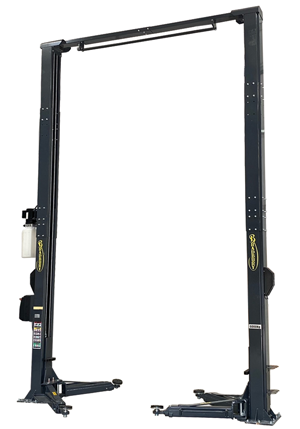

Bradbury H2603G 2 Post Vehicle Lift
Bradbury H2603G 2 Post Vehicle Lift
The H26 series of Bradbury twin-ram two post lifts are fully baseless with over head gantries making them ideal for moving transmission jacks and oil drainers beneath the vehicle.
With a low pad height of just 122mm these lifts are suitable for most makes and models of cars up to LWB vans.
Versions:
- H2603G – Gantry height of 4256mm (drive under clearance)
- H2603HG – Gantry height of 5256mm (drive under clearance)
**Please note that the colour may vary from that shown in the picture, new colours for 2021 are Grey RAL7016 with yellow Bradbury Decals** Both models are only available in three phase.
October Deal
Free HITO1050 Tool Case worth £295.00
£6715.00 + VAT
P/No. : brah2603g
Technical Specification
| Lifting Capacity | 6000kg |
| Lifting/Lowering Time | 60 seconds / 40 Seconds |
| Minimum Height (pad) | 122mm - 215mm |
| Maximum Height | 1872mm - 1965mm |
| Front Minimum/Maximum Arm Lengths | 981mm / 1811mm |
| Rear Minimum/Maximum Arm Lengths | 981mm / 1811mm |
| Motor Size | 3 phase only – 2.2kW |
| Power Requirements | 3 phase – 16a Isolator Required |
| Operation | Electro-hydraulic |
Call us now on 01823 328530 for more details
