Power Probe PP3 Circuit Tester PP319FTCRED

Power Probe PP3 Circuit Tester PP319FTCRED

One probe. Every electrical test.

The Power Probe 3 is a handheld, all-in-one automotive circuit tester for diagnosing electrical faults on 12V and 24V DC systems — a digital voltmeter, polarity indicator, continuity tester, signal monitor and power/ground injector in one rugged body. This PP319FTCRED hard-case kit adds a 20 ft (6 m) power-cable extension and a cigarette-lighter adapter, so the tool reaches further around the vehicle and powers up from the 12V socket — all stored in a tough tool case.

Features and Functions

• Supply battery voltage or ground right at the probe tip to power motors, lamps, relays and solenoids — no back-probing the loom
• Digital voltmeter (0–70V) with min/max capture and a backlit LCD reading to 0.1V
• Red/green polarity LEDs and distinct audible tones confirm positive, negative and open circuits
• Two built-in LED work lights illuminate the test area
• Two-level continuity testing (LCD <20kΩ, green LED <600Ω) plus audible signal monitoring
• Hard-case kit adds a 20 ft (6 m) cable extension for double the reach and a cigarette-lighter adapter for 12V socket power

Technical Specifications

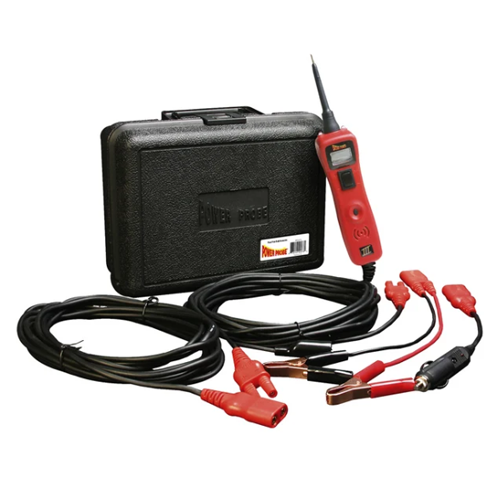

What's in the box?

• 1× Power Probe 3 tester (Red)
• 1 x Hard case
• 1× 20 ft power cable with battery clips
• 1× 3 in stainless steel probe tips
• 1× battery clip seta
• 1× instruction manual
• 1x Cigarette Lighter Adapter
• 20 ft (6 m) Power Cable Extension
