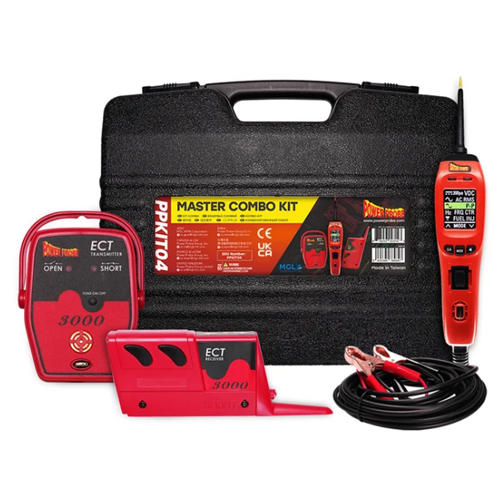

Power Probe PPKIT04 with Power Probe 4 PP401AS and ECT3000

Two tools. One diagnostic workflow.

The Power Probe 4 Master Combo Kit pairs the Power Probe 4 (PP4) advanced circuit tester with the PPECT3000 Electronic Circuit Tracer and a full adapter set in a hard carry case. The PP4 powers and measures components; the ECT3000 locates the physical position of shorts and open circuits inside the harness — without removing panels, carpet or molding.

Features and Functions

Power Probe 4 supplies battery power or ground at the probe tip to functionally test motors, lamps, relays, sensors and injectors — on or off the vehicle
Advanced PP4 signal modes: multiple DC readouts, ohmmeter, continuity, bad-ground, AC-RMS, peak-to-peak, frequency and pulse width
Dedicated fuel-injector mode and a PCM/ECM driver test for safely exercising computer-controlled driver circuits
PPECT3000 tracer locates shorts and open circuits inside the harness without removing panels, carpet or molding
Adjustable receiver sensitivity (1–8 in / 3–20 cm) to zero in on the exact fault location
PPECT mode pairs the PP4 with the tracer to pinpoint open circuits
Full adapter set — bulb, universal, alligator, blade, back-probe and piercing probes — in a hard carry case

£496.99 + VAT

P/No. : ppkit04s

Technical Specifications

PP4 operating voltage	8 – 30 V DC (12 / 24 V systems)
PP4 voltage measurement	–100 to 200 V DC / AC
PP4 resistance	0.1 Ω – 10 kΩ
PP4 frequency	1 Hz – 9999 Hz
PP4 circuit breaker	8 A thermal, self-resetting
PP4 cable length	23 ft (7 m)
ECT3000 transmitter	4 kHz signal, 6 – 48 V DC
ECT3000 receiver sensitivity	1 – 8 in (3 – 20 cm)

What's in the box?

1× Power Probe 4
1× ECT3000 transmitter
1× ECT3000 receiver
1× power probe tip
3× light-bulb adapters
Universal, alligator, blade & back-probe adapters
Small & large piercing probes
2× battery clipsets
1× 3 ft lead
AAA batteries
Hard carry case

Call us now on01823 328500 for more details
