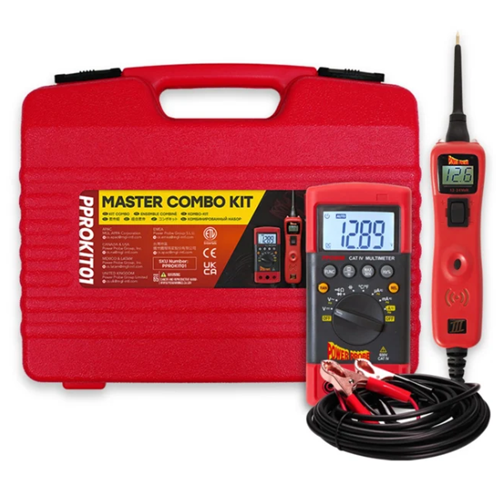

Power Probe PPROKIT01 with PP3CSRED and PPDMM

Power Probe PPROKIT01 with PP3CSRED and PPDMM

Circuit tester plus multimeter. One pro kit

The Power Probe PROKIT (PPROKIT01) is a professional electrical test kit that pairs the Power Probe 3 (PP3) circuit tester with the PPDMM CAT IV 600V hybrid-safe digital multimeter. Use the PP3 to apply power and ground at the tip and actuate components, then reach for the PPDMM to measure voltage, current, resistance, capacitance, frequency, diode, continuity and temperature — with every lead, adapter, fuse and battery packed into one blow-moulded case.

Features and Functions

• Power Probe 3 supplies power and ground at the tip to actuate motors, relays and solenoids, with continuity LEDs and an audible tone
• PPDMM digital multimeter reads AC/DC voltage to 600V, current to 10A, resistance to 60 MOhm, capacitance to 60 mF and frequency to 10 kHz
• Diode, continuity and temperature measurement to 1000C on a 6000-count display with backlight, hold, autoranging and MIN/MAX/REL
• CAT IV 600V / CAT III 1000V hybrid-safe rating for working across installations
• Full accessory set: 10 ft red and black leads, 5 ft CAT IV test leads, alligator clips, back-probe and blade-probe adapters and 4 mm couplers
• Spare 10A and 600mA fuses, magnetic strap and batteries, all in a blow-moulded carrying case

Technical Specifications

What's in the box?

• 1× Power Probe 3 (PP3)
• 1× PPDMM digital multimeter
• 10 ft red lead
• 10 ft black lead
• 5 ft CAT IV 600V test leads
• 2× alligator clips
• Back probe adapter
• Blade probe adapter
• 4 mm male/male and female/female adapters
• 3 in probe tip
• Battery clip set
• Spare 10A and 600mA fuses
• Magnetic strap
• 3× AAA batteries
• Instruction manual
• Blow-moulded carrying case
