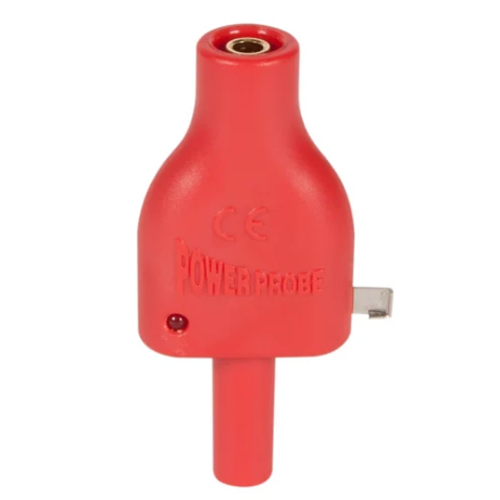

Power Probe PPT5VA 5 Volt Adapter
Power Probe PPT5VA 5 Volt Adapter
Test the sensor. Not the battery.
The Power Probe PPT5VA is a plug-in adapter that fits between a compatible Power Probe circuit tester and its probe tip, stepping the tester's output down from 12-24V battery voltage to a current-limited 5V. Use it to test sensor, ECU and other low-voltage circuits, or to supply a steady 5V reference during diagnostics, without risking full battery voltage.
Features and Functions
- Current-limited 5V output protects sensitive low-voltage electronics from full battery voltage.
- Supplies a steady 5V reference to simulate a sensor signal or output during diagnostics.
- Plugs in via a standard 4mm banana connector, fitting between the tester body and the probe tip.
- Accepts 12-24V input, covering both standard 12V and 24V vehicle electrical systems.
- LED indicator on the adapter body; CE marked.
£32.95 + VAT
P/No. : ppt5va
Technical Specifications
| Function | Range / value |
|---|---|
| Input voltage | 12-24V (from host tester) |
| Output voltage | 5V, current-limited |
| Connector | Standard 4mm banana |
| Indicator | LED |
| Certification | CE marked |
