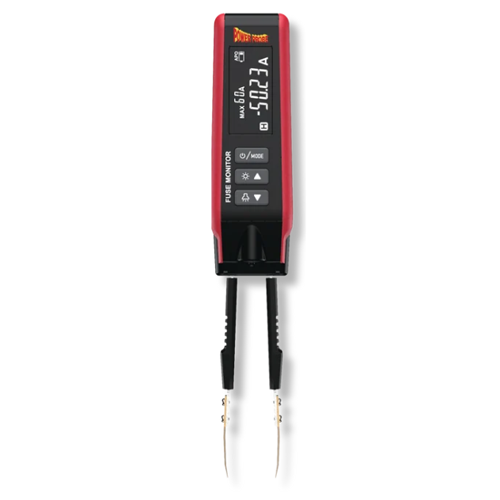

Power Probe PPFUSE Fuse Monitor

Read the fuse. Keep it in.

The Power Probe Fuse Monitor reads the current flowing through a blade fuse without removing it. Two slim probe tips touch the fuse's metal test points; a backlit LCD shows the live current and a three-colour STATUS LED gives an instant verdict — so you can sweep a fuse box and see which circuits draw current, which are idle and which fuses have blown.

Features and Functions

Monitors battery voltage and parasitic draw up to 10A through the OBDII port to find what's killing the battery
Smart Output supplies 12V at up to 10A so the car keeps its radio codes, presets and module settings during a battery swap
2.8" colour TFT with graphing mode plots the last ~20 seconds of voltage and current as a live waveform
Bluetooth links to the Power Probe Link app (iOS / Android) to stream and data-log readings
Adjustable current alarm flags draw above a threshold you set on screen
Built-in rechargeable lithium battery with USB-C PD fast charging; over-voltage, over-current and temperature protection

£119.95 + VAT

P/No. : ppfuse

Technical Specifications

Fuse types	MINI 2–30A · ATC/ATO 1–40A · MAXI 20–80A
Resolution	0.01 A
Accuracy	± (3% + 5 digits)
Status LED	Green / Yellow / Red
Auto-Hold	5 s reading freeze
Battery	3.7 V / 420 mAh Li-ion, ~10 h
Charging	USB Type-C
Auto power-off	10 min

What's in the box?

1× Power Probe Fuse Monitor
1× USB-C charging cable
1× User manual
