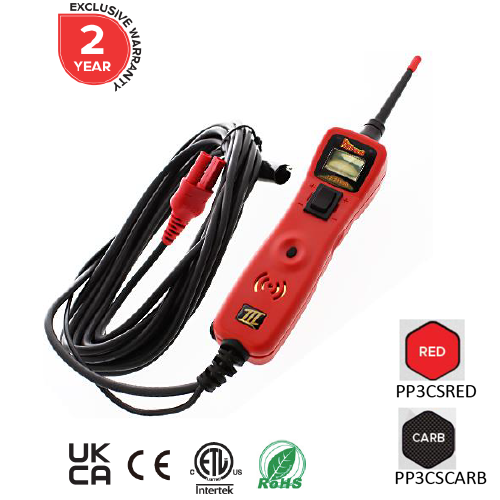

Power Probe PP3 Circuit Tester PP3CSRED

One probe. Every electrical test.

The Power Probe 3 is a handheld, all-in-one automotive circuit tester for diagnosing electrical faults on 12V and 24V DC systems. It combines a digital voltmeter, polarity indicator, continuity tester, signal monitor and a power/ground injector in a single rugged body — replacing the test light, multimeter, jumper wire and continuity tester a workshop would otherwise reach for.

Features and Functions

20ft(6m) power cable
Supply battery voltage or ground right at the probe tip to power motors, lamps, relays and solenoids — no back-probing the loom
Digital voltmeter (0–70V) with min/max capture and a backlit LCD reading to 0.1V
Red/green polarity LEDs and distinct audible tones confirm positive, negative and open circuits
Two built-in LED work lights illuminate the test area
Bad-ground indicator flags poor earth connections — a frequent cause of intermittent faults
Two-level continuity testing (LCD <20kΩ, green LED <600Ω) plus audible signal monitoring

Red

£139.95 + VAT

P/No. : pp3csred

Carbon

£139.95 + VAT

P/No. : pp3cscarb

Technical Specifications

DC voltmeter range	0 to +70V DC + 1 digit
Working voltage	12V / 24V DC
Circuit breaker	8 A thermal, manual reset
Continuity to ground	Display <20kΩ · green LED <600Ω
Power cable length	20 ft (6 m)
Probe tip	3 in (8 cm) stainless steel

What's in the box?

1× Power Probe 3 tester (Red)
1× 20 ft power cable with battery clips
1× 3 in stainless steel probe tips
1× battery clip seta
1× instruction manual
