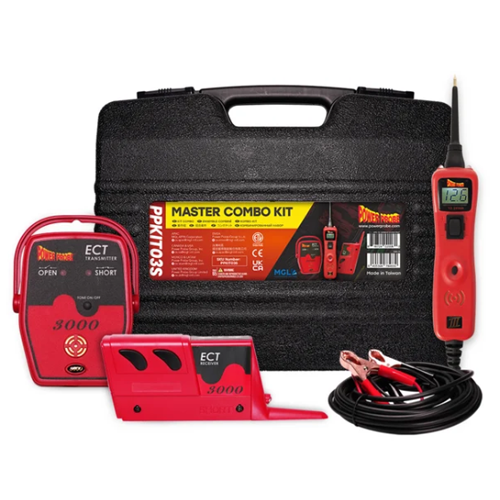

Power Probe PPKIT03S with PP3CSRED and ECT3000

Power Probe PPKIT03S with PP3CSRED and ECT3000

Two tools. One diagnostic workflow.

The Power Probe 3 Master Combo Kit pairs the classic Power Probe 3 (PP3) circuit tester with the PPECT3000 Electronic Circuit Tracer and a full adapter set in a hard carry case. The PP3 powers and measures components; the ECT3000 locates the physical position of shorts and open circuits inside the harness — without removing panels, carpet or moulding.

Features and Functions

• Power Probe 3 supplies battery power or ground at the probe tip to functionally test motors, lamps, relays and solenoids — on or off the vehicle
• Digital voltmeter reads 0 to 70V DC with min/max capture, backed by red/green polarity LEDs
• Two-level continuity to ground (LCD <20kΩ, green LED <600Ω) plus audible tone pass-through from 10Hz to over 10kHz to listen to sensor signals
• Peak detector captures positive and negative transient events down to 1ms pulse width
• PPECT3000 tracer locates shorts to ground, open circuits and breaks behind panels, carpet or moulding
• Adjustable receiver sensitivity (1–8 in / 3–20 cm) to zero in on the exact fault location
• The ECT3000's 4kHz tone is audible directly through the PP3 for side-by-side use
• Full adapter set — bulb, universal, alligator, blade, back-probe, piercing probe and auxiliary ground extension — in a hard carry case

Technical Specifications

What's in the box?

• 1× Power Probe 3 (Red)
• 1× ECT3000 transmitte
• 1× ECT3000 receiver
• 1× PP3 power cable with battery clips
• 1× PP3 probe tip
• 1× Universal, alligator, blade & back-probe adapters
• 1× Green piercing probe
• 3× Light-bulb adapters
• 1× Auxiliary ground extension cable
• 1× Cigarette-lighter adapte
• AAA batteries
• 1× Hard carry case
