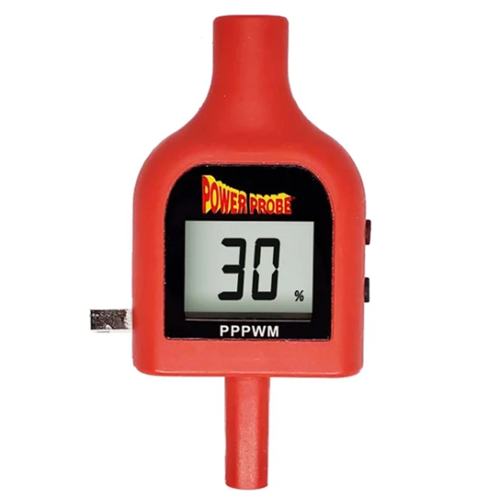

Power Probe PPPWM Pulse Modulation Tip

Drive the circuit. Find the fault.

The Power Probe PPPWM is a PWM signal generator built as a plug-in adapter tip. Fit it into the 4mm banana tip of a compatible Power Probe circuit tester and it outputs a pulse-width-modulated drive signal with an adjustable duty cycle. Ramp a cooling fan, blower motor, actuator or solenoid up and down from the buttons to confirm it responds, and isolate the faulty part of a DC circuit before you repair or replace it.

Features and Functions

Plug-in PWM drive output: turns a compatible Power Probe circuit tester into a variable PWM source through the 4mm banana tip
Adjustable duty cycle from 5% to 100% set with up/down buttons, at a switching frequency above 22kHz with ±2% accuracy
Output rated up to 10A to power real loads such as cooling and blower motors, fuel pumps, solenoids and actuators
Backlit LCD shows the set duty cycle; a voltage mode displays the supply (press Up and Down together to switch)
Built-in protection: Er1 overheat trip on prolonged high-current use and Er0 ground-fault warning that disables output until grounding is corrected
Powered by the host Power Probe (12V through the tip) with no separate battery to charge or replace

P/No. : pppwmtip

Technical Specifications

Output	PWM drive signal
Duty cycle	Adjustable 5% - 100%
Switching frequency	Greater than 22kHz
Duty-cycle accuracy	±2%
Output current	Up to 10A
Supply voltage	12Vdc (from host tester)
Operating voltage range	8Vdc - 16Vdc
Display	Backlit LCD, duty cycle and voltage
Protection	Er1 overheat trip, Er0 ground-fault warning
Power	Powered through the host Power Probe (no battery)
Standards	UL 61010-1 / 61010-2-030, CSA C22.2, CE
Compatibility	Power Probe III, IV, Master, ECT3000 (4mm banana tip)
Application	12V automotive DC circuits, indoor use
Warranty	2 years limited
