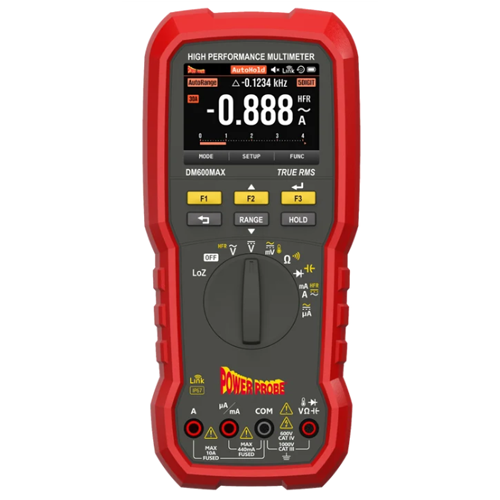

Power Probe DM600MAX True RMS Automotive Multimeter

One meter. Every measurement.

The Power Probe DM600MAX is a high-performance true-RMS digital multimeter built for automotive technicians who need precision in a harsh workshop. A 40,000-count colour display, rotary mode switch and contextual soft-key menu put voltage, current, resistance, capacitance, frequency and temperature a turn away — with Bluetooth logging to the Power Probe Link app.

Features and Functions

True-RMS AC voltage and current on a 40,000-count (4¾-digit) colour LCD with bar/trend graph
LoZ low-impedance mode eliminates ghost voltages on modern CAN-equipped harnesses
HFR low-pass filter reads the average of PWM signals — injectors, electric power steering, hybrid inverters
Temperature (K-type), capacitance, frequency, duty cycle and pulse width measurement in one tool
Bluetooth link to the Power Probe Link app (iOS / Android) — live readings plus a 40,000-point data log
Peak Hold, MAX/MIN/AVG, Auto-HOLD and relative Δ / % modes for capturing intermittent faults
Optional 30 A test probe for starter, charging and electric-fan current

£339.95 + VAT

P/No. : ppdm300auto

Technical Specifications

Resolution	40,000 counts (4¾-digit), True RMS
DC voltage	40 mV – 1000 V (0.03% best)
DC current	400 µA – 10 A (30 A optional probe)
Resistance	400 Ω – 40 MΩ
Capacitance	40 nF – 40 mF
Frequency	0.5 Hz – 100 kHz
Temperature (K-type)	–200 °C to +1200 °C
Safety / ingress	CAT III 1000V · CAT IV 600V · IP67
Connectivity	Bluetooth — Power Probe Link app
Power	4 × AA, ~50 h typical

What's in the box?

1× DM600MAX multimeter
1× test lead set (CAT III 1000V / CAT IV 600V)
1× alligator clip set
1× K-type thermocouple probe
4× AA batteries
1× user manual
