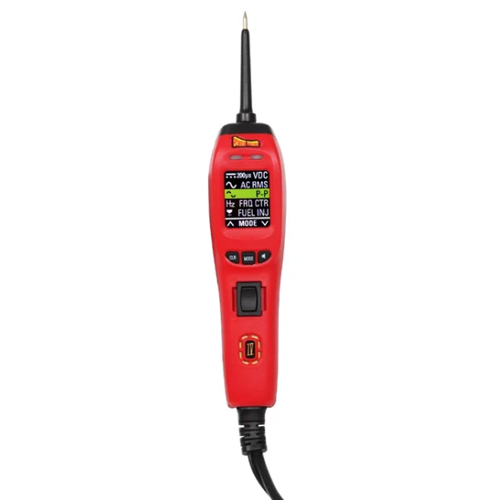

Power Probe PP4 Automotive Circuit Tester

Power, ground and diagnostics. One probe.

The PP4 is the next generation of Power Probe Circuit Testers, now loaded with powerful MultiMeter functions and advanced diagnostic test modes, an easy to read colour LCD display and a new rugged housing.

The PP4 can test for AC/DC Volts RMS & Volts Peak to Peak, Measures Resistance, Hertz, Frequency and Pulse Width Negative & Positive. PP4 can also test Fuel Injectors & supply computer safe voltage for testing Module Drivers. PP4 also works with the ECT3000.

Features and Functions

Applies battery power or ground directly at the probe tip to actuate motors, relays, lights and solenoids
Eight diagnostic modes: DC volts, AC volts RMS, AC peak-to-peak, resistance, frequency, pulse width, fuel injector and module driver
Colour LCD with back light shows multiple readings on one screen; LED work lights illuminate the job
0.1mA floating tip designed for computer-safe module-driver testing
Auto-reset 8 amp circuit breaker and a rugged housing built for daily workshop use
23 ft (7 m) heavy-duty lead, works on 12V and 24V systems, and pairs with the ECT3000 circuit tracer

£289.95 + VAT

P/No. : pp401as

Technical Specifications

Diagnostic modes	8 (DC V, AC V RMS, AC P-P, resistance, frequency, pulse width, fuel injector, module driver)
System voltage	12V to 24V
Operating voltage	8 VDC to 30 VDC
Max tip voltage	450V
Computer safe	0.1mA floating tip
Voltage measurement	-100 to 200 VDC / VAC (70 VAC RMS)
Resistance	0.1 Ohm to 10 kOhm
Frequency	1Hz to 9999Hz
Circuit breaker	8 Amp thermal, auto-reset
Cable length	7 m (23 ft)
Display	Colour LCD with back light, LED work lights
Operating temperature	-20C to 50C

What's in the box?

1× Power Probe IV (PP4) circuit tester
23 ft (7 m) heavy-duty power lead
Battery clip set
Alligator clip adapter
3 in (8 cm) removable probe tip
Carrying case
Instruction manual
