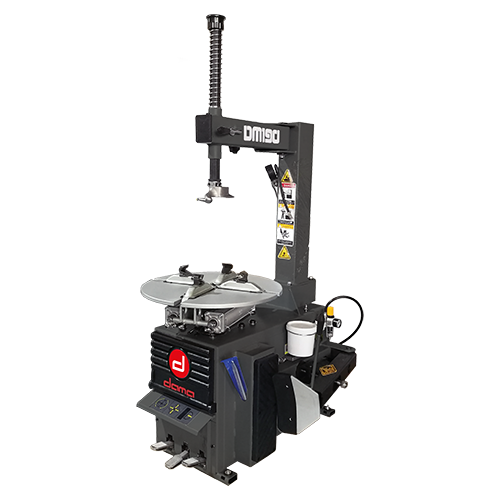

Dama HDM190 Automatic Tyre Changer

Dama HDM190 Automatic Tyre Changer
A low cost Semi-Automatic tyre changer offering good features ideal for the lower volume user or users with a specific tyre changing need.
The swing arm style is ideal for crammed spaces where room is limited or the equipment needs to be flush to the wall. This unit will cover wheel sizes from 11” to 25” and tyre widths from 3” to 14” with a maximum wheel diameter of 100cm and includes alloy wheel protection to the demount head.
The HDM190 has an excellent bead breaker force of 2400kg and comes complete with filter, regulator, tyre pressure gauge, tyre lever and soap bucket. This unit is delivered in single phase 240V.
Price includes delivery and installation.
Standard Equipment
- Swing Arm Action
- Filter regulator air / oil
- Tyre inflator woith pressure gauge
- Tyre lever
- Soap bucket
- Plastic protectors for demount head / jaws
Technical Specification
Tyre width | 3"-14" |
Wheels (from inside) | 13" - 23" |
Wheels (from outside) | 11" - 23" |
Max. Wheel Diameter | 100cm |
Current - Power Supply | 230V / 1ph 1.1KW/50Hz |
Operating Pressure | 8-10 bar |
Bead Breaker Force | 2400Kg |
Net Weight | 249Kg |
Warranty | 24 months |

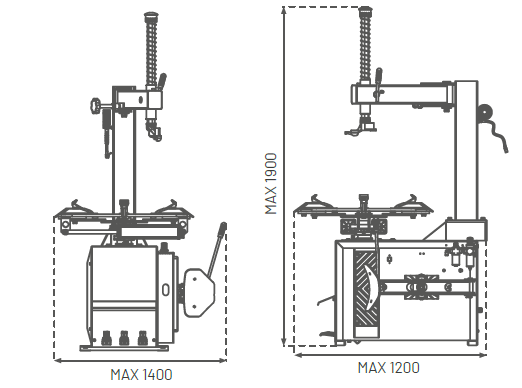

Drawings
Downloads
Tyre Changer Starter/Consumables Kit

Tyre Changer Starter/Consumables Kit
Kit includes:
- Steel type balance weights in boxes of 100 :- 5g 10g 15g 20g
- Alloy / continental type balance weights in boxes of 100 :- 5g 10g 15g 20g
- 3 x box of adhesive alloy type weight strips x 100
- 100 x short tyre valves
- 100 long tyre valves
- 954ml of heavy duty bead sealing solution
- Valve core tool
- Valve pulling tool Buffing stone (golf ball type)
- Tyre skiving knife (wooden handled)
- 4” tyre reaming tool 500ml aerosol cleaning spray
- 40 x mushroom / pull type repair patches
- 236ml of vulcanising solution
- Patch roller
- Heavy duty reusable nitrile gloves
- 5KG tub of tyre paste
- Lubricant brush
- Tyre tread depth gauge
- Pocket tyre pressure gauge
- Bead Sealer 500ml
