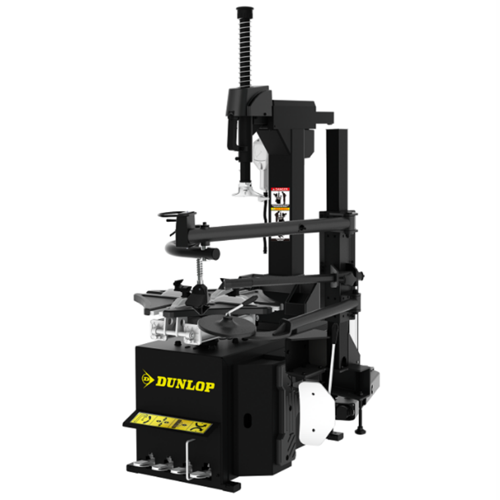

Dunlop DTM385HD Tyre Machine
Dunlop DTM385HD Tyre Machine with WCAA 3rd Arm Assist
The Dunlop DTM385HD Tyre Machine is a fully automatic tyre changer which is suitable for run flat and low profile tyres. As standard, this tyre changer features an alloy protection cover for the turntable.
This tyre changer can be fitted with an assist arm to aid the user with changing low profile and run flat tyres (WCAA optional extra).
P/No. : dundtm385hd
Technical Specification
| Clamping capacity (outside/rim diameter) | 11″ – 22″ |
| Clamping capacity (inside diameter) | 13″ – 24″ |
| Rim width | 3″ – 13″ |
| Maximum wheel diameter | 1040mm |
| RPM | 7 RPM |
| Operating pressure | 8 – 10 BAR |
| Air required | Yes |
| Bead breaker force | 2,500KG |
| Electrical supply | Single Phase 220/240V |
| Size of demount shaft | 41mm |
| Size of slider arm | 55mm |
