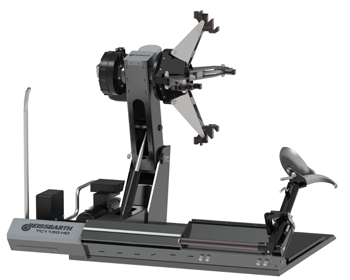

Beissbarth TC1150HD Tyre Changer

Beissbarth TC1150HD Tyre Changer

Truck tyre changer

  • 14-42" rim size
  • Extendable up to 56"
  • 1150mm rim width
  • 2000kg
  • 400V

The TC1150 HD: The ultimate heavy-duty truck tyre changerSelf-centering chuck

  • Four powerful jaws ensure perfect locking on rims of all shapes and profiles
  • Rotates clockwise and anti-clockwise at 4.5 to 9 rpm
  • Opens and closes hydraulically with adjustable pressure
  • Five grip zones, six different possibilities for clamping the rim

Powerful mounting and demounting tool arm

  • Manual adjustment of the tool inclination and direction
  • Simply rotate tool to switch between bead breaking roller and bead extraction
  • Quick and manual movement of the tool arm closer to or further away from the wheel
  • Get the tool arm completely out of the way with one simple move for better access to the wheel
  • Powerful bead breaker with 25,000N force in & out

Robust and intuitive cable remote

  • Joystick 1 (up & down): Wheel up and wheel down
  • Joystick 1 (left and right): Movement of tool carriage
  • Joystick 2: Open and close jaws
  • Left pedal: rotate anti-clockwise
  • Right pedal: rotate clockwise
  • Freely movable inside complete working area

Superior versatility

  • Effortlessly handles rims up to 42" diameter, extendable up to 56"
  • Covers wheels up to 2300mm in diameter and 1150mm in width
  • Built to handle weights up to 2000kg

Note: For maximum safety, holes for floor fixation are pre-drilled in the factory by default.

Scope of deliveries:

  • Truck mounting lever
  • Rim clamp
  • 400V plug

Technical Data

Max. wheel diameter 91" | 2300 mm
Weight 855 kg
Rim diameter max. 42 "
Wheel width max. 45" | 1150 mm
Wheel weight max. 2000 kg
Length 2350 mm
Height 860 - 1450 mm
Width 1870 mm
Power supply 400V | 3Ph | 50Hz
Motor power 2,2 - 3 kW
Rim diameter min. 14 "
Rotation speed 4,5 - 9 rpm
Packaging length 1950 mm
Packaging width 2250 mm
Packaging height 1030 mm
Gross weight 1060 kg
Country of Origin, customs IT
Diameter of centre bore diameter min. 5" | 122 mm
Number of mounting speeds stufenlos
Bead breaker cylinder force 25000N @ 10bar
Stackable 2 Piece(s)
Units per 20ft container 4 Piece(s)
Units per 40ft container 10 Piece(s)
