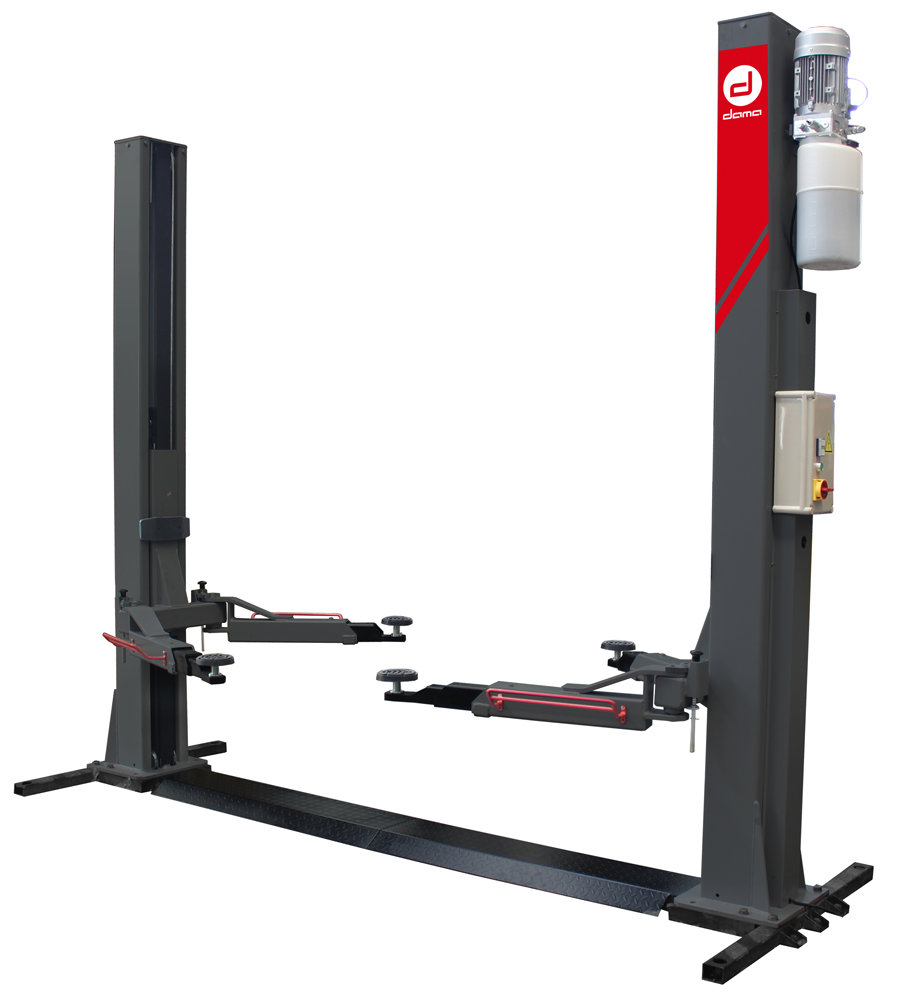

Dama HDM4.0T 2 Post Lift

Dama HDM4.0T 2 Post Lift

Dama HDM4.0T 2 Post Lift

An ideal service lift with a lifting capacity of 4 tonnes, able to be installed on variable surfaces and an improved flexibility to maximum the range of vehicles able to be lifted.

4.0T comes complete with 4 x 3 stage arms and 80mm riser extension pads

Price includes delivery and installation.

Only £2795.00 + VAT
P/No. : hdm40t
QTY :
Lease From £15.16 Per Week
Click Here for Details

Features

  • 4T capacity
  • 4 x 3 stage arms
  • H base for better adaptation to all types of floors
  • Adjustable pad min height 110-160mm
  • Lifting time 60 seconds
  • Electric lock release
  • Available in Single & 3 phase
  • 14 months warranty

Technical Specification

Maximum Lifting Weight 4000Kg
Maximum Lifting Height 1820mm
Lifting Time 3 Phase 60sec
Lifting Time Single Phase 75sec
Lowering Time 18 - 40 seconds
Net Weight 700kg
Power Source 220V / 1ph / 50Hz / 11.8A / 2.2KW
400V / 3ph / 50Hz / 4.31A / 2.2KW
Warranty 14 Months

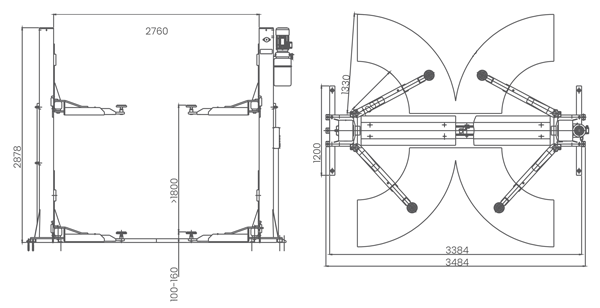

Drawings

Dama HDM4.0T 2 Post Lift

Downloads

Dama Brochure
