Bosch KTS350 Diagnostic Tester

Bosch KTS350 Diagnostic Tester

Bosch KTS350 Diagnostic Tester

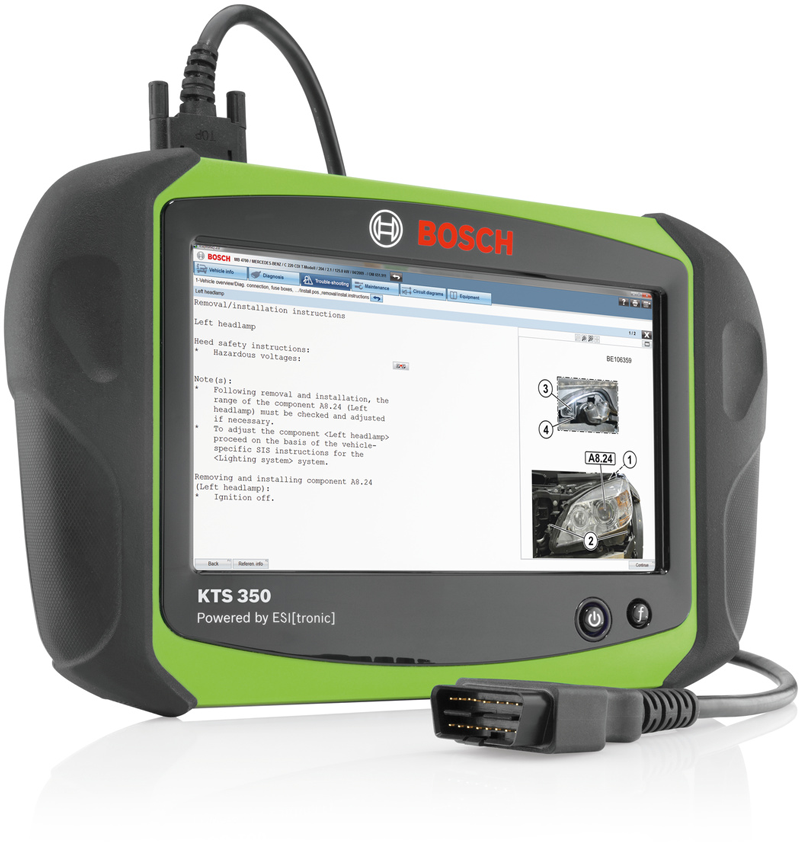

The new KTS350 is a compact all-in-one tester consisting of a 10-inch tablet PC and an integrated communication module.

Thanks to this versatile solution, the KTS350 is ideally suited as a tester for independent workshops, fast fitter or as a second device for mobile use. With the preinstalled Bosch diagnostic application ESI[tronic] 2.0, the KTS350 provides an efficient overall package for control unit diagnosis, maintenance, troubleshooting and repair.

The benefits of the KTS350 at a glance

  • In addition to all of today’s standard vehicle interfaces, it even supports the new, Ethernet-based interfaces and is therefore perfectly prepared for the future demands of the automotive environment.
  • The KTS350 supports the PassThru-Technology. This allows you to reprogram the control units via the portals of the vehicle manufacturers according to Euro 5/6.
  • Thanks to the improved processor and modern SSD technology a quick system start and efficient working is possible. You gain valuable time in your daily work life
  • The KTS350 is equipped with Windows 10 which allows installation of additional applications. It allows easy integration into your existing workflows.

The KTS350 is a mobile all-round solution and by modern technology a worthwhile investment in the future.

Technical Data

Processor IntelĀ® CeleronĀ® N3160 1.6 (2.24) GHz, Quad Core
RAM 4 GB DDR3
Memory 256 GB SSD
Display 10.1" TFT Touchscreen, Display resolution 1024 x 600
Battery Lithium Ion. 5200 mAh @7.2V
Wireless Bluetooth 2.1 Power class 1,
WLAN IEEE 802.11 b/g/n
Interface 2 x USB 3.0, LAN 10/100 Mbit, VGA, Audio
Operating System Windows 10 IoT
Weight Approx. 2 kg
Dimensions 361 x 222 x 49 mm
External DVD Drive Yes
OBD Connection Cable 1.8m
