Dama HDM5.5MSI2H Scissor Lift

Dama HDM5.5MSI2H Scissor Lift

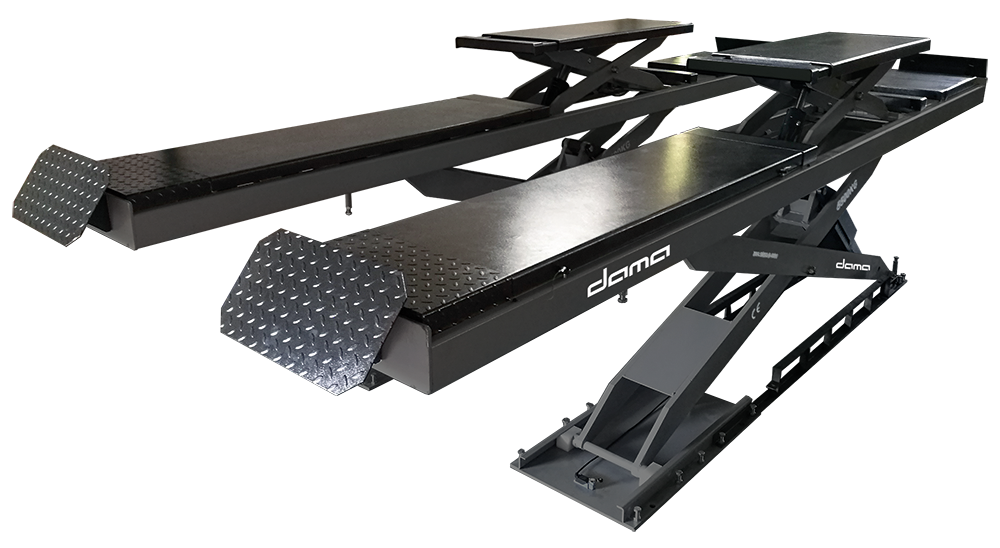

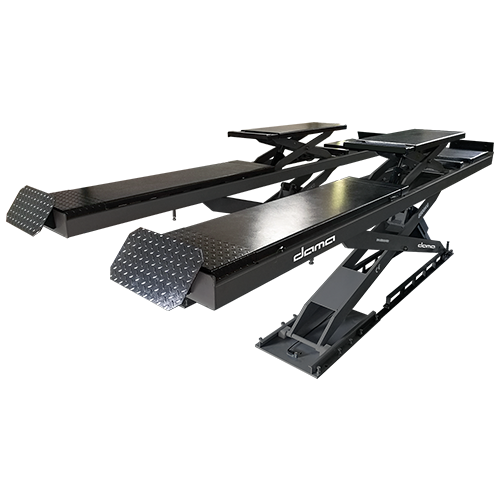

Dama HDM5.5MSI2H Full Length Wheel Alignment Scissor Lift

This versatile wheel alignment scissor lift comes complete with an integral secondary scissor lift, wheel alignment rear slip plates and front turn plate recesses making it ideal for general servicing and as a highly accurate geometry lift.

The robust design, accurate syncorisation and air locking ensure accurate and repeatable levelness essential for the latest 3D aligners. Having a choice of lifting capacity of 4.5 or 5.5 tonne and a long 5,000mm platform means the lift can cover a full range of vehicles from cars to large vans. This lift can either be installed as a recessed lift or surface mounted by using the optional extended run up ramps.

Price includes delivery and installation.

£11595.00 + VAT
P/No. : hdm55msi2h
QTY :
Lease From £62.88 Per Week
Click Here for Details

Technical Specification

Load Capacity 5500Kg
Main Lift Elevation 380mm - 2200mm
Secondary Lift Elevation 450mm
Main Platform Length 5000mm
Main Machine Lifting Time 50 seconds
Main Machine Lowering Time 60 seconds
Sub Machine Lifting Time 20 seconds
Sub Machine Lowering Time 30 seconds
Air Supply 6-8 bar
Power Supply 400V 3ph - 230V 1ph - 50Hz 2.2KW

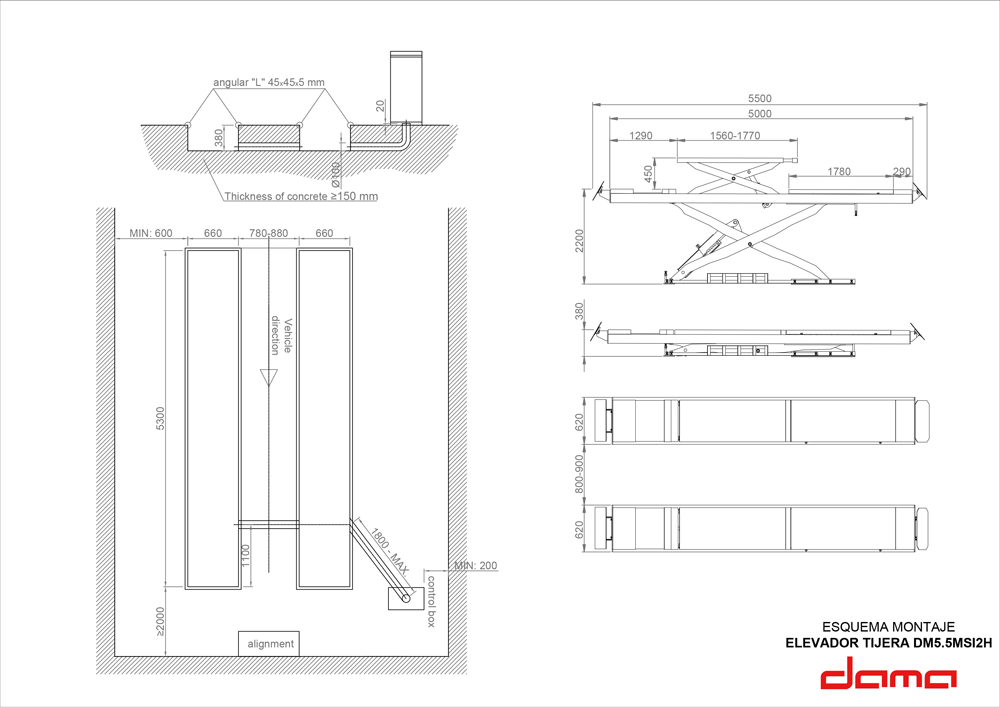

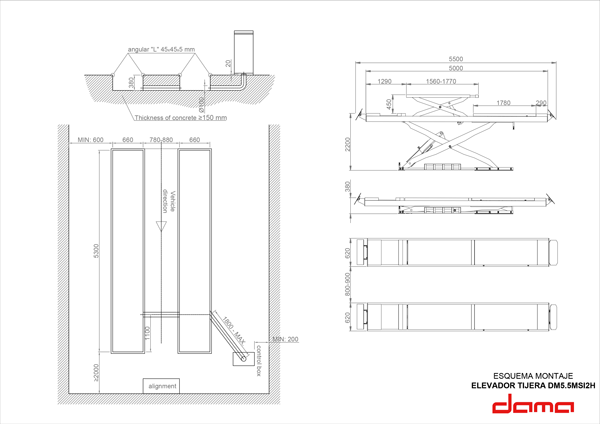

Drawings

Dama HDM5.5MSI2H Scissor Lift

Downloads

Dama Brochure
