HDM4.5MLA Bodywork Scissor Lift
HDM4.5MLA Bodywork Scissor Lift

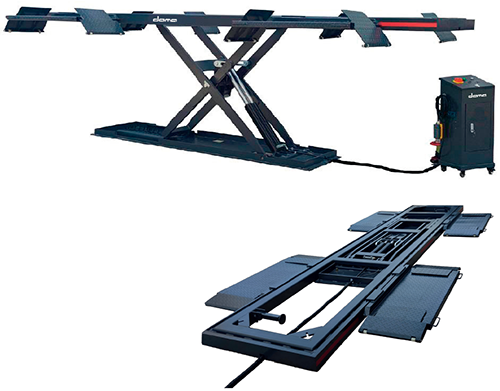

The perfect lift for a Bodyshop, this specially designed lift offers the Bodyshop everything it needs to carry out strip & repair, the vehicle can sit in its wheels but has all around accessibility to the bodywork and chassis. The single central scissor action maximises space around the vehicle and the lift frame can act as a securing point for body tools etc. with a 4.5t capacity it can take most large vehicles.
Price includes delivery and installation.
Technical Specification
| Maximum Weight | 4500Kg |
| Lifting Height | 120-1450mm |
| Total Length | 1020mm |
| Motor Power | 400V / 3ph / 50 Hz 2.2Kw |
| Weight | 1300Kg |
| Warranty | 24 Months |

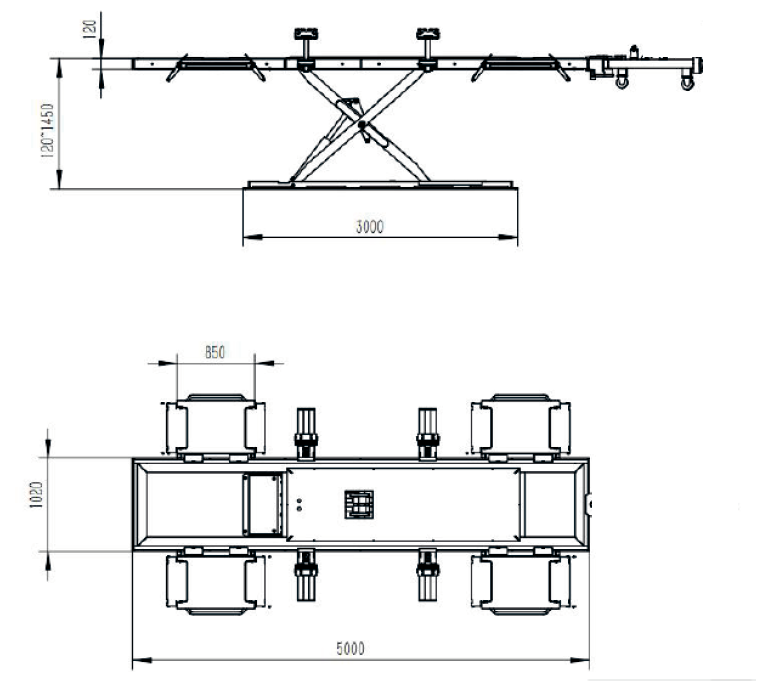

Drawings
Downloads
Call us now on 01823 328530 for more details
