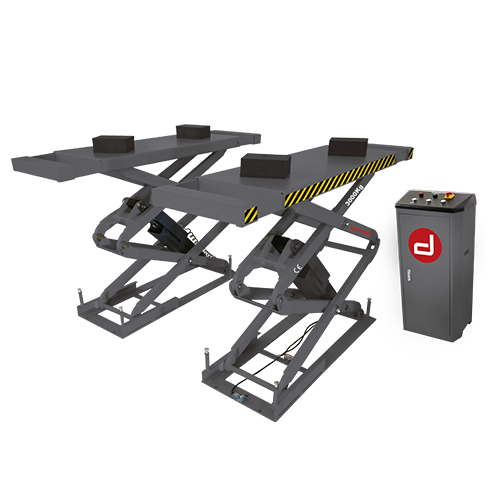

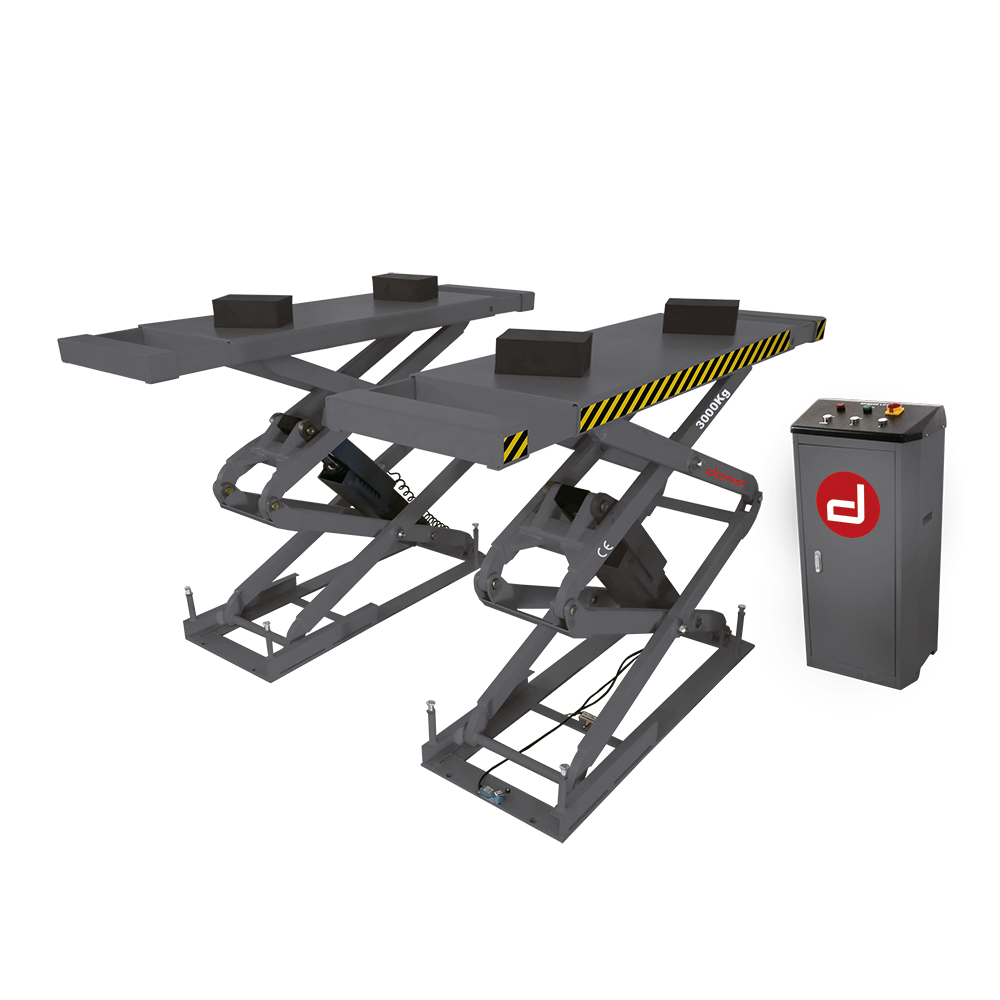

Dama HDM3.0S Scissor Lift

Dama HDM3.0S Scissor Lift

Dama HDM3.0S Scissor Lift

A high quality full height scissor lift designed to be recessed flush to the ground. The 3 tonne capacity and extendable platforms from 1450mm to 2050mm can cope with a huge variety of vehicles, and the ability to lift to 1900mm above the floor enables the vehicle to be lifted to full height.

Being single phase 220V, this unit can be installed in any workshop.

Price includes delivery and installation.

Only £3295.00 + VAT
QTY :
P/No. : hdm30s
Lease From £17.87 Per Week
Lease OfferClick Here for Details

Technical Specification

Lifting Capacity 3000Kg
Lifting Height 1900mm above floor (lift installed 330mm under floor level)
Platform Height 330mm
Platform Length 1450 - 2050mm
Platform Width 550mm
Power Supply 1ph 220V 50Hz
Lifting Time 55 seconds
Dropping Speed 55 seconds
Machine Width 1900mm
Machine Height 1900mm
Warranty 14 Months

Drawings

Dama HDM3.0S Scissor Lift
