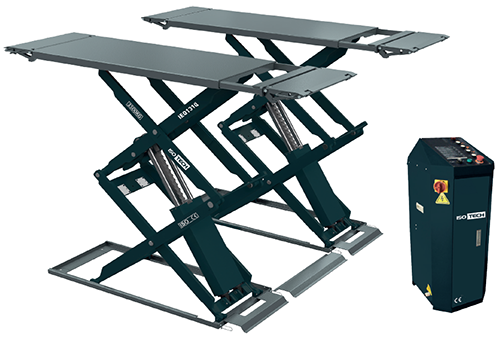

Isotech by Dama HIEQ1310 3.5T Scissor Lift
Isotech by Dama HIEQ1310 3.5T Scissor Lift
A top quality, short platform, surface mounted, full height, 3.5T scissor lift. These lifts are designed to be surface mounted due to their low profile structure. Offers dual scissor operation via single or dual rams, auto safety locks and a self levelling system. This is an ideal option when limited space is available or you want all around access to the vehicle.
Features
- Electro-hydraulic
- Low profile (105mm) for surface mounting
- High capacity 3500 kg
- Max height 2000mm
- Automatic leveling
Technical Specification
| Capacity | 3500 Kg |
| Lifting Time | 46 secs |
| Lowering Time | 30-40 secs |
| Weight | 919 Kg |
| Platform Length | 1477mm-2300mm |
| Power Supply | 3 KW / 400 V / 3 PH / 50 Hz |
| Warranty | 24 Months |

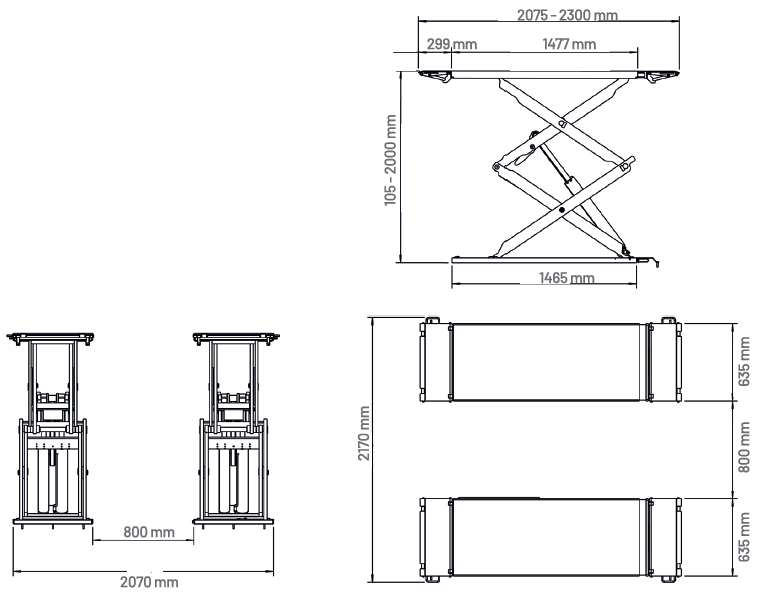

Drawings
