Dama HDM3.5MV2 Scissor Lift
Dama HDM3.5MV2 Scissor Lift
The MV2 offers the same powerful 3.5T capacity and great features of the HDM3.5MV but offer a wider platform width ideal for larger vehicles, 4x4 and vans. With the diversity of lifting / jacking points often the lift points are on the vehicle outer edge making lifting more precarious on a standard width lift.
This extra wide lift boasts an additional 140mm total platform width over the standard lift
Retaining the low pick up of 110mm and max height of 1000mm the MV range is ideal in bodyshops, tyreshops, inspecting bays and anywhere where you have spare space around the garage.
Either leave it in one place or move it effortlessly around the garage the choice is yours.
Price includes delivery and installation.
Features
- Low profile operation platform
- 2 cylinders structure, synchronization system
- Mechanical safety lock at different heights. Pneumatic release system
- Portable pump station. Flexible and convenient
- Movable devices, easy to use
- No installation required
- Limit switch
- Electric locking device. No air supply needed
Technical Specification
| Maximum Weight | 3500Kg |
| Maximum Height | 1000mm |
| Minimum Height | 110mm |
| Lifting Time | 30 seconds |
| Total Width | 1900mm |
| Distance between Platforms | 840mm |
| Motor Power | 2.2Kw |
| Weight | 605Kg |
| Warranty | 24 Months |

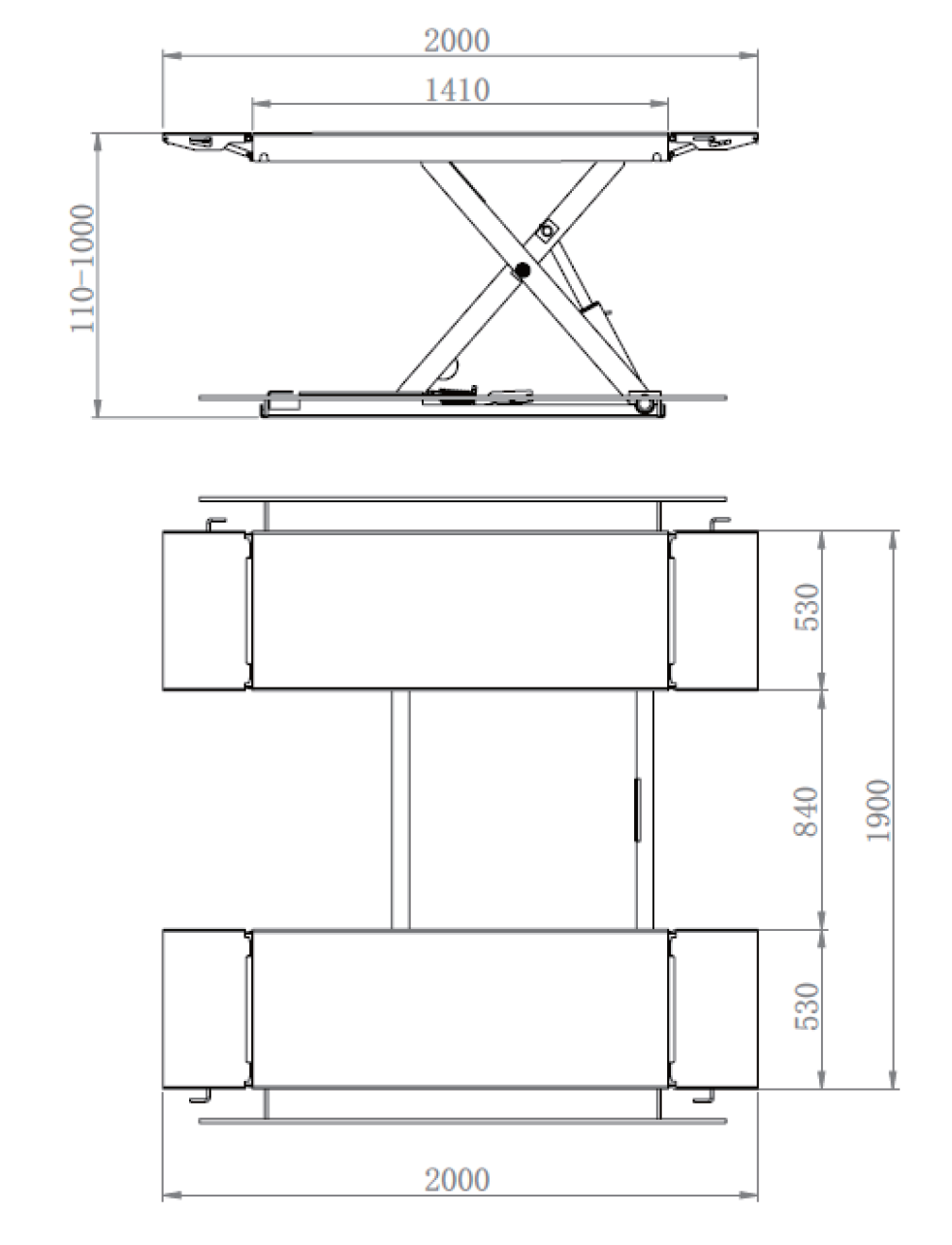

Drawings
Downloads
Call us now on 01823 328530 for more details
