Dunlop DSL3 Scissor Lift

Dunlop DSL3 Scissor Lift

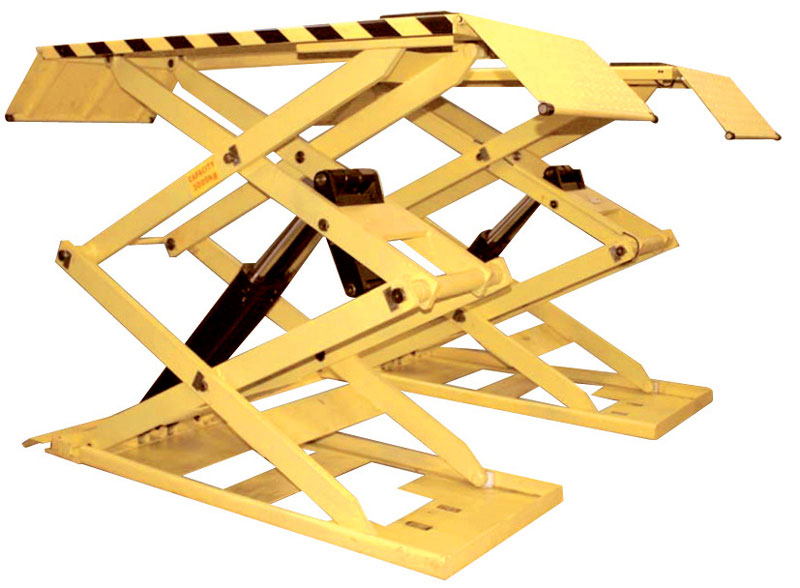

Dunlop DSL3 Surface Mounted Scissor Lift

A full height scissor lift with double scissor action and twin rams.

Ideal for confined spaces and wheel free requirements. can be recesssed if required.

P/No. : dundsl3


  • Easy to handle drive-on and drive-off ramps
  • Extra low profile hydraulic scissors lift (98mm)
  • Hydraulically synchronised platforms
  • Overload and safety valve in case of sudden loss of pressure
  • Automatic lowering control
  • Dead man controls 24V
  • Set of 4 rubber pads
  • Warning buzzer on last portion of descent
  • CE approved

Technical Specification

Lifting Capacity 3000kg
Operation Electro-hydraulic
Lifting Time 35 seconds
Lowering Time 40 seconds
Lifting Height 1840mm
Minimal Height 105mm
Motor Single or 3 phase
Weight 730kg

Call us now on 01823 328530 for more details
