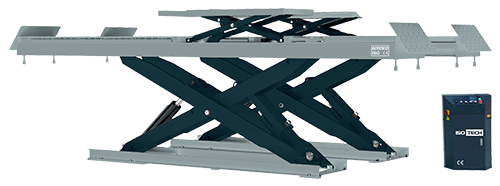

Dama HIEQ1336 Wheel Alignment Scissor Lift
Isotech by Dama HIEQ1336 Wheel Alignment Scissor Liftt
A high quality recessed long platform wheel alignment lift with an impressive 6t capacity. This lift offers everything you can need in a wheel alignment lift, 6t capacity, 5400mm platform length, built in wheel free scissor with 4t capacity, built in front turnplates recess and air lockable rear slip plates.
Price includes delivery and installation.
Technical Specification
| Main Lifting Capacity | 6000Kg |
| Secondary Lifting Capacity | 4000Kg |
| Min Height | 380mm |
| Max Height | 2100mm |
| Main Platform Length | 4800mm |
| Lifting Time | 70 secs |
| Power Supply | 400V 3Ph 50Hz 2 x 3.5Kw |

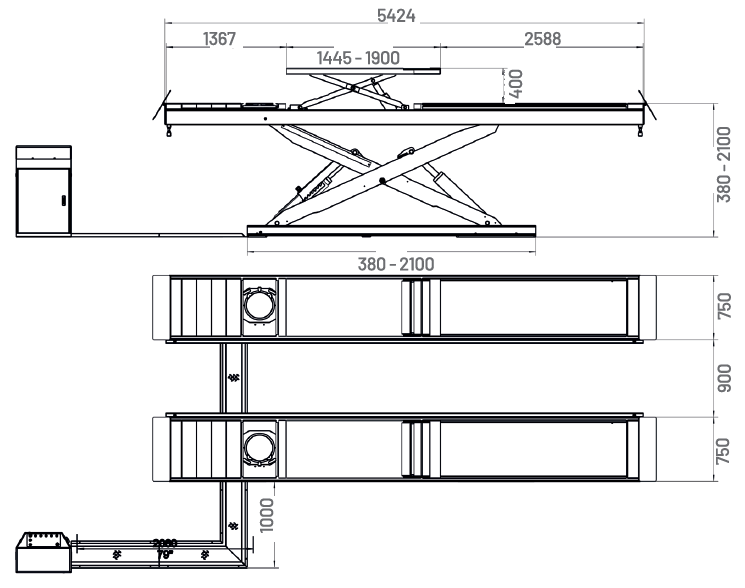

Drawings
