Dama HDM0.5MN Motorcycle/Quad Scissor Lift
Dama HDM0.5MN Motorcycle/Quad Scissor Lift

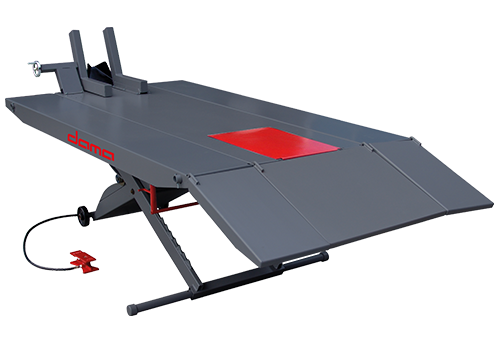

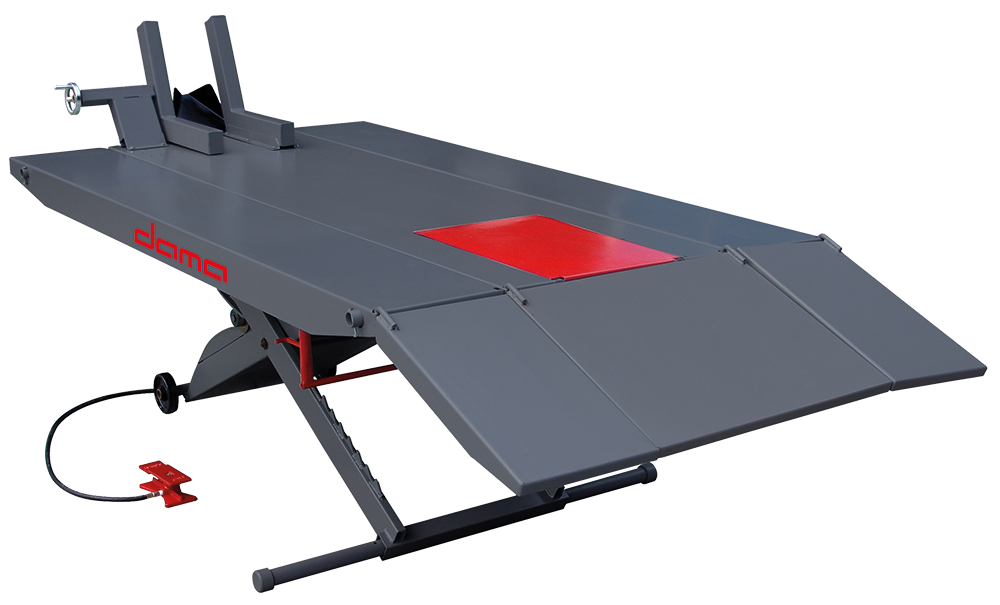

A compact pneumatically operated motorcycle/quad lift with a 1230mm wide platform and a capacity of 500kgs.
The sides can be removed to allow access to motorcycles
Technical Specification
| Capacity | 500 Kg |
| Minimum Height | 170mm |
| Maximum Height | 800mm |
| Dimensions | 2465mm x 1230mm |
| Table Dimensions without Extensions | 2127mm x 600mm |
| Working Presssure | 6-8 bar |
| Net Weight | 214 Kg |
| Gross Weight | 254 Kg |
| Warranty | 24 Months |

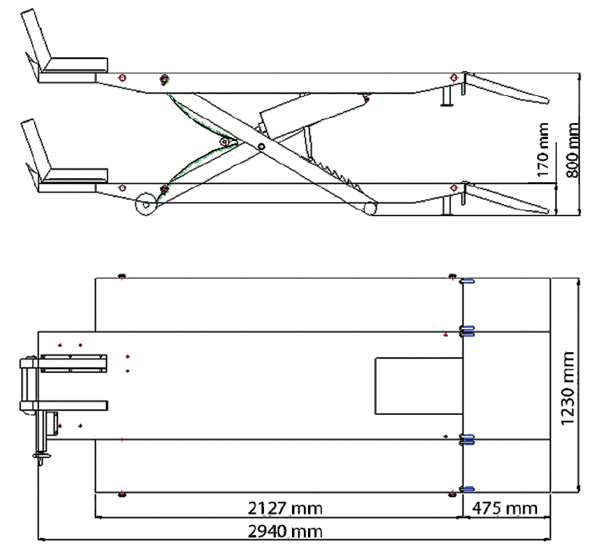

Drawings
Downloads
