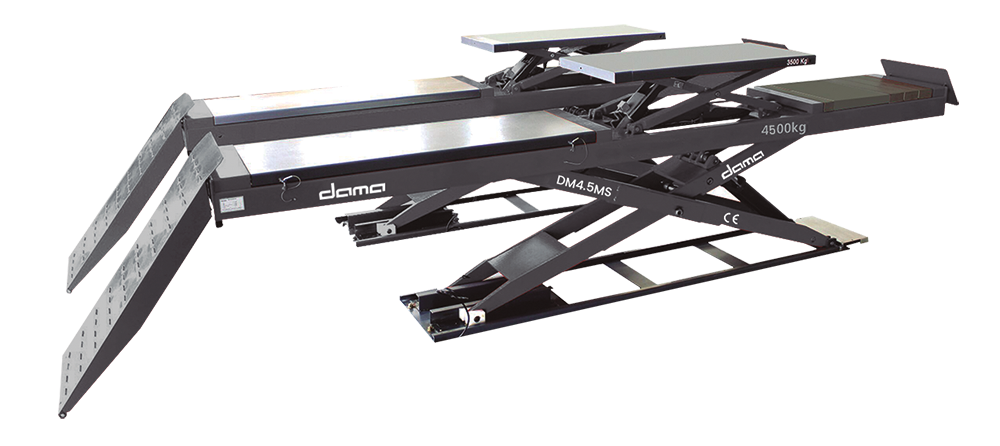

Dama HDM4.5MS Double Scissor Lift

Dama HDM4.5MS Double Scissor Lift

Dama HDM4.5MS Double Scissor Lift

A perfect option for a service or wheel alignment lift where a larger capacity and longer platform is required, this 4.5t capacity service and wheel alignment lift has rear slip plates, integral scissor lift and removable fillets to fit front turnplates.

The platforms gives a very generous 4800mm in length, ideal for longer vans and Motorhomes and the integrated scissor extendable platforms of 1830mm.

One of the real advantages of this lift is the suitability to surface mounting, with a minimum height of 240mm and long lightweight run on ramps it enables this lift to be used without excavation.

Price includes delivery and installation.

Only £9495.00 + VAT
P/No. : hdm45ms
QTY :
Lease From £51.49 Per Week
Click Here for Details

Technical Specification

Main Lifting Capacity 4500Kg
Secondary Lifting Capacity 3500Kg
Main Lift Elevation

400mm

Main Platform Length 4800mm
Lifting Time 90 secs
Power Supply 400V 3Ph 50Hz 3.0Kw

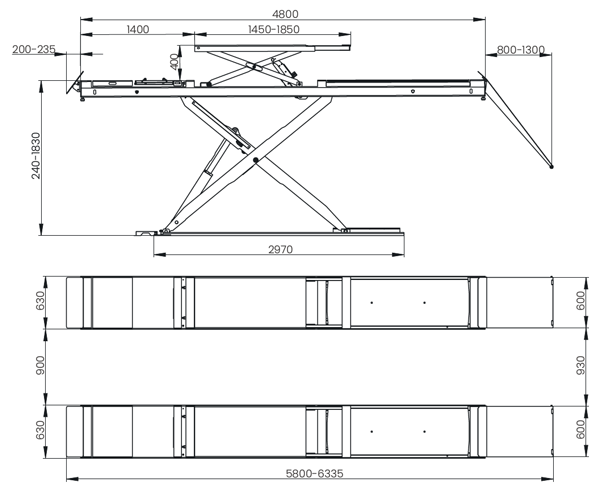

Drawings

Dama HDM4.5MS Double Scissor Lift

Downloads

Dama Brochure

Call us now on 01823 328530 for more details
