Dama HDM5.0ME Scissor Lift

Dama HDM5.0ME 5T Scissor Lift

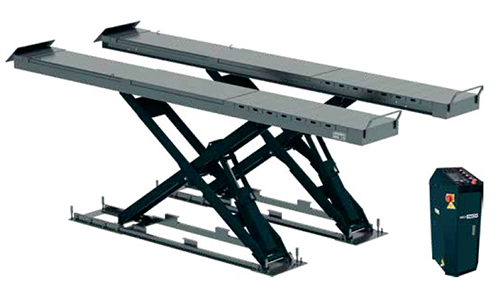

A recessed 5tonne wheel alignment scissor with long 5100mm platforms is ideal for longer cars, vans & motorhomes. This lift has a large 5T lifting capacity, built in rear lockable slip plates recesses for turnplates, the lift is equipped with locking to ensure it is level at all heights. Being recessed there is no difficulty getting any vehicle no matter how low onto the lift. Has rails to carry a jacking beam as an option.
Price includes delivery and installation.
Technical Specification
Main Lifting Capacity | 5000Kg |
Lifting range | 360mm - 2060mm |
Main Platform Length | 5342mm |
Lifting Time | 75 secs |
Power Supply | 230V 1Ph 50Hz 2.2Kw |

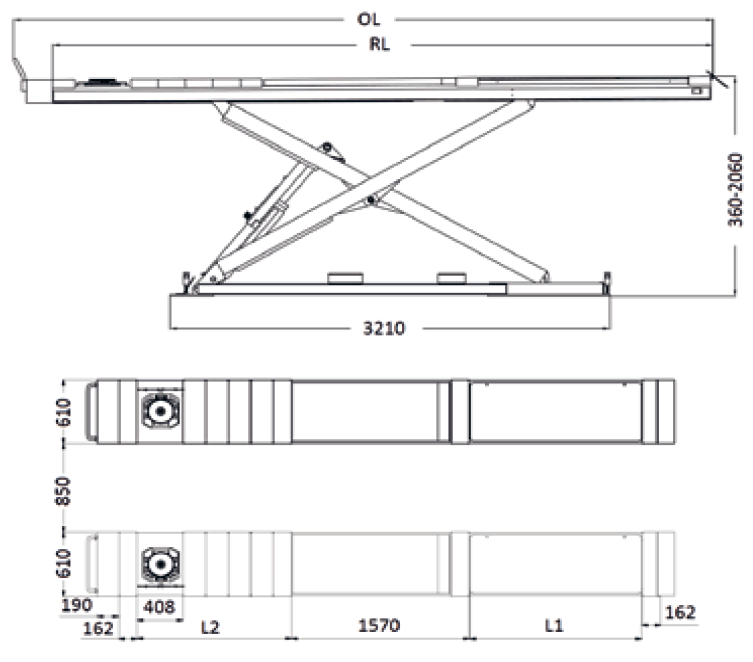

Drawings
Downloads
