Crypton Midrise Scissor Lift
Crypton Midrise Scissor Lift

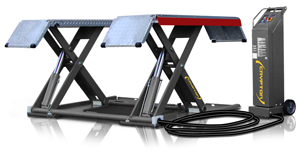

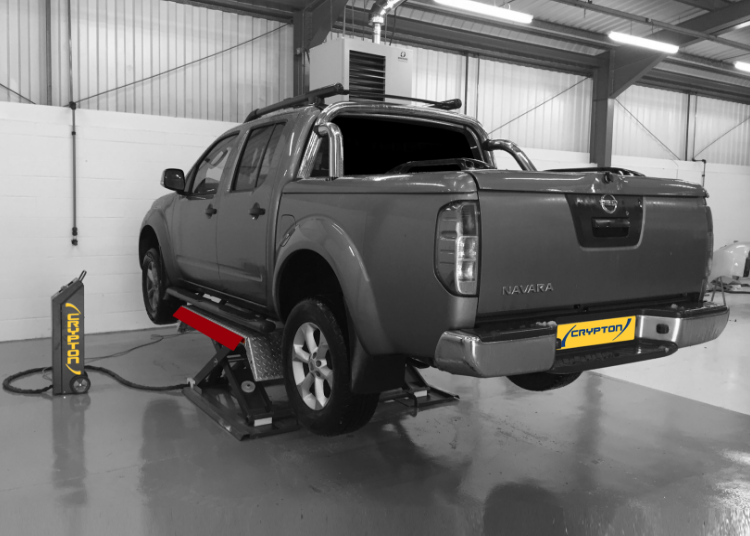

Crypton's midrise scissor lift is an efficient, reliable and versatile solution for lifting most vehicles, including SUV’s up to 3 tonnes. With a comfortable one metre lifting height, it is suitable for tyre, brake, suspension and body work.
Portable and designed to fit in any workshop, this midrise scissor lift can be placed just about anywhere without getting in the way. Thanks to its solid steel construction and anti-skid galvanised platform, it can be used outdoor for maximum flexibility.
Assembled at the factory for quick installation. Hydraulic oil is not included.
- 3 years warranty (UK mainland only)
- Includes 4 ductile blocks to protect the vehicle's underbody
Features
- Extended platforms for long wheel base vehicles
- Attractive galvanised checker plate platform
- Anti-skid platform
- Front and rear mounting ramps
- Hydraulically operated
- Red rubber anti-toe traps
- Supplied with four ductile polymer pads to protect the vehicle’s under body
- Portable control unit
Technical Specification
| Capacity | 3000kg |
| Lifting height | 990mm |
| Lowest lifting point | 102mm |
| Drive over height | 102mm |
| Overall height | 990mm |
| Overall width | 1900mm |
| Runway width | 450mm |
| Runway length | 1400 - 2010mm |
| Power supply | Single Phase |
| Motor | 1,5kW |
| Motor speed | 3000 rpm |
| Hose length | 3m |
| Hydraulic pressure | 230bar |
| Pressure relief valve | 260bar |
| Oil tank | 8 Litres |
| Sound level | ≤70dB |
| Connection by customer | Fuse 16amp (motor rated trip) |
Call us now on 01823 328530 for more details
