Stenhoj Magix 45 Scissor Lift

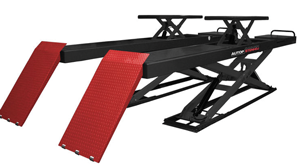

Stenhoj Magix 45 4.5T Scissor Lift

The AUTOPSTENHOJ MagiX 45 Series of scissor lifts compromises of four different models with three choices of platform lengths. These lifts have an impressive lifting capacity of 4.5 tonnes and the integral/secondary lifting versions are capable of up to 4 tonnes .

As with all other AUTOPSTENHOJ scissor lifts, these lifts are electro-hydraulically operated and are fitted with a clever safety device should a pipe burst. In addition all models include LED lighting, 1000mm drive on ramps (suitable for surface mounted applications), end stops, hose covers and expansion bolts.

ALL AUTOPSTENHOJ lifts are led through a sling purifying plant (according to SA2.50 – ISO-Norm 8501-1:2007), dipped in primer and finally led through an electrostatic powder bake plant.

From £16995.00 + VAT

P/No. : stenmagix45

Lease From £92.16 Per Week
Click Here for Details

Features

Double master / slave system
Control stand with integrated pump unit and alarm signal
Electronic synchronization
Emergency lowering valve
Sturdy scissor construction
No mechanical connection between scissor sections
Optimum access to vehicle
Low minimum height
Variable fitting width

WL versions for wheel alignment also feature a special locking device (parking mechanism) for accurate wheel alignment.

The four models to choose from are as follows :

S model – Standard flat platforms (no integral/secondary lifting)
S Combi model – Standard flat platforms with integral/secondary lifting
WL model – Wheel alignment model with rear slip plates and front recesses for turn plates (turn plates excluded) without integral/secondary lifting
WL combi model – Wheel alignment model with rear slip plates and front recesses for turn plates (turn plates excluded) with integral/secondary lifting
4500mm, 4800mm and 5200mm platforms available

Technical Specification

	S	S Combi	WL	WL Combi
Lifting Capacity	4500kg	4500kg	4500kg	4500kg
Secondary Lift	N/A	4000kg	N/A	4000kg
Lifting/Lowering Time	50 seconds	50 seconds	50 seconds	50 seconds
Platform Height	220mm	220mm	220mm	220mm
Maximum Height	1900mm	1900mm + 400mm	1900mm	1900mm +400mm
Platform Length	4500mm or 4800mm or 5200mm	4500mm or 4800mm or 5200mm	4500mm or 4800mm or 5200mm	4500mm or 4800mm or 5200mm
Platform Width	660mm	660mm	660mm	660mm
Jacking beam rails	Yes	No	Yes	No
Overall width of lift	2120mm – 2320mm	2120mm – 2320mm	2120mm – 2320mm	2120mm – 2320mm
Motor Size	3kw	4kw	3kw	4kw
Power Required	3 phase (16amp isolator required)	3 phase (16amp isolator required)	3 phase (16amp isolator required)	3 phase (16amp isolator required)
Operation	Electro-hydraulic	Electro-hydraulic	Electro-hydraulic	Electro-hydraulic
