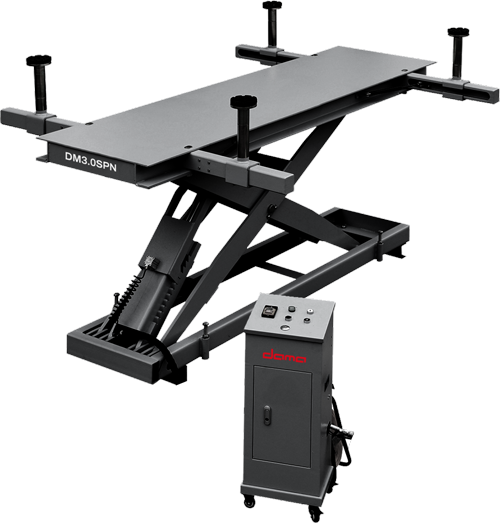

Dama HDM3.0SPN Bodyshop Scissor Lift
Dama HDM3.0SPN Bodyshop Scissor Lift
A bodyshop scissor lift with 3 tonne lifting capacity and 1460mm lifting height.
Price includes delivery and installation.
Features
- 3000kgs capacity
- 3 phase/400v
- Electrohydraulic operation
- Max. lifting height: 1460mm
- Platform length: 1700mm - 2260mm
- Designed to be recessed
Technical Specification
| Maximum Weight | 3000Kg |
| Lifting Height | 280-1460mm |
| Total Width | 1700 - 2260mm |
| Lifting / Lowering Time | <50s |
| Motor Power | 400V / 3ph / 50 Hz 2.2Kw |
| Weight | 600Kg |
| Warranty | 24 Months |

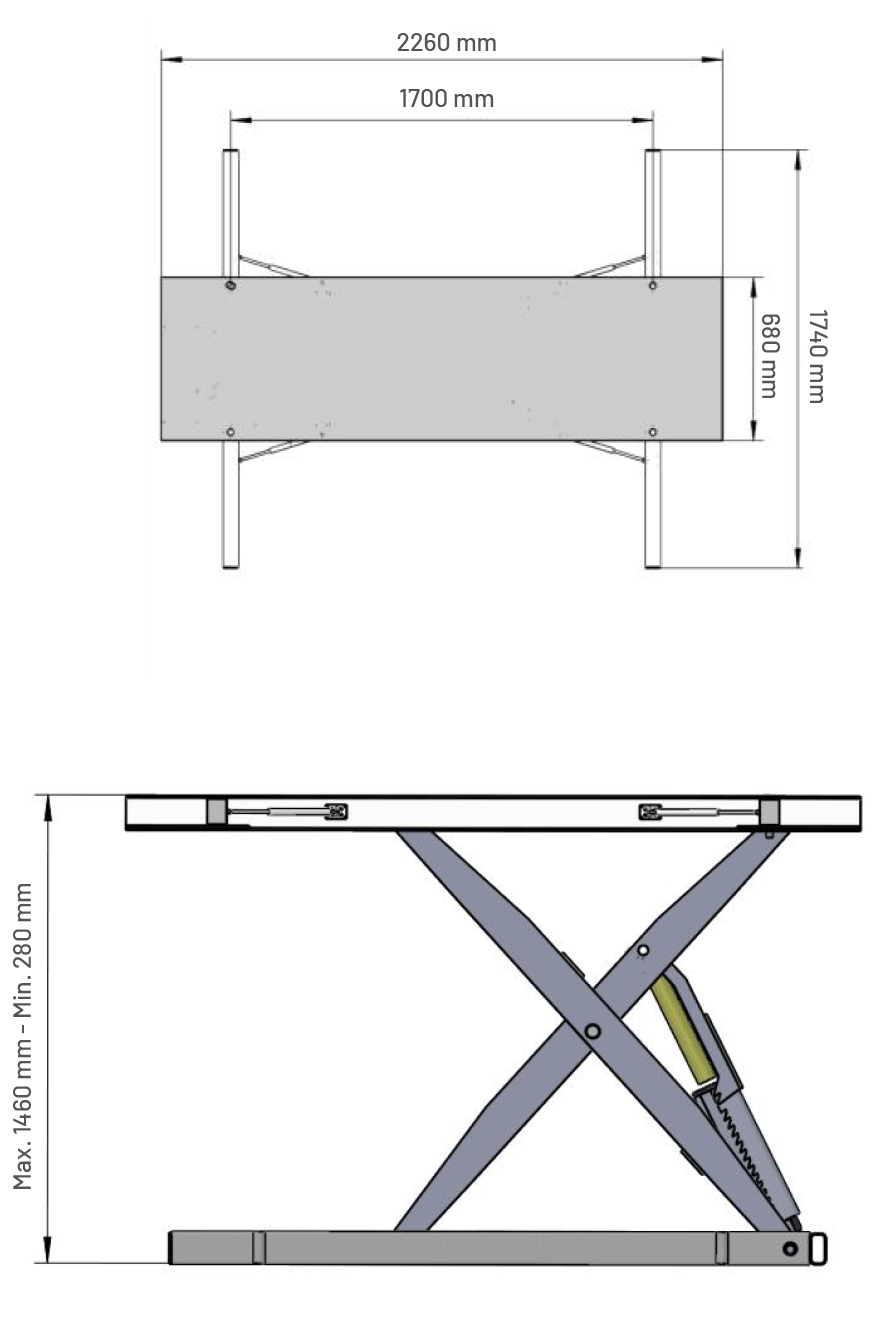

Drawings
Downloads
Call us now on 01823 328530 for more details
