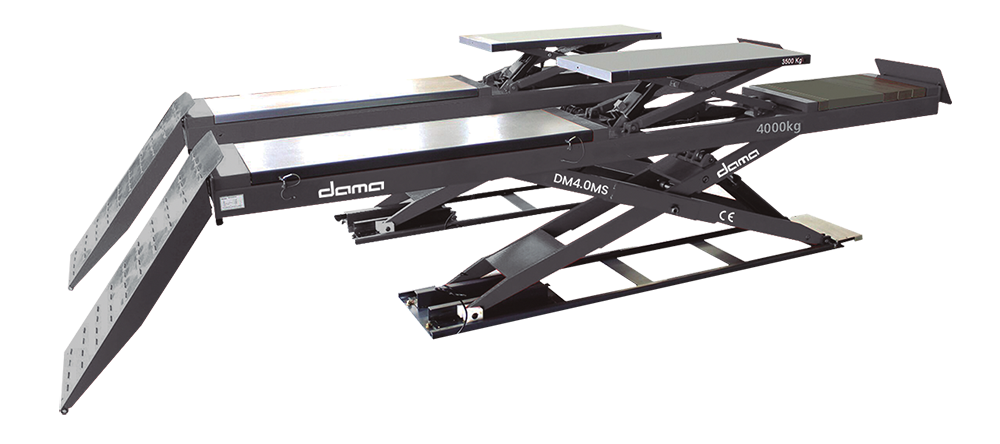

Dama HDM4.0MS Double Scissor Lift

Dama HDM4.0MS Double Scissor Lift

Dama HDM4.0MS Double Scissor Lift

A perfect option for a service or wheel alignment lift where space is restricted, this 4t capacity service and wheel alignment lift has rear slip plates, integral scissor lift and removable fillets to fit front turnplates.

The platforms gives a generous 4500mm in length and the integrated scissor extendable platforms of 1830mm.

One of the real advantages of this lift is the suitability to surface mounting, with a minimum height of 240mm and long lightweight run on ramps it enables this lift to be used without excavation.

Price includes delivery and installation.

Only £8595.00 + VAT
P/No. : hdm40ms
QTY :
Lease From £46.61 Per Week
Click Here for Details

Technical Specification

Main Lifting Capacity 4000Kg
Secondary Lifting Capacity 3500Kg
Main Lift Elevation

400mm

Main Platform Length 4500mm
Lifting Time 90 secs
Power Supply 400V 3Ph 50Hz 3.0Kw

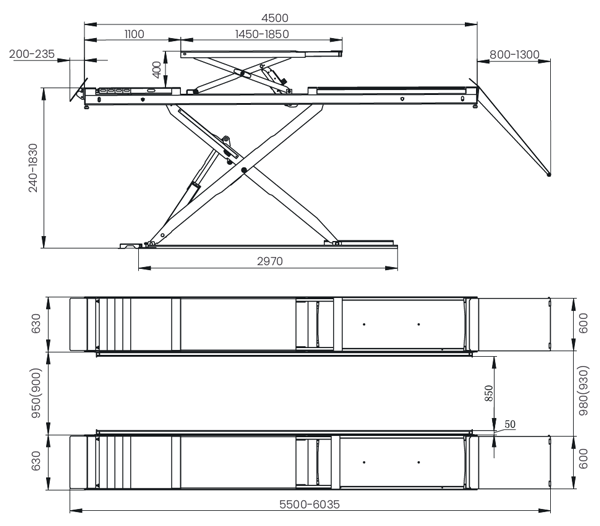

Drawings

Dama HDM4.0MS Double Scissor Lift

Downloads

Dama Brochure
