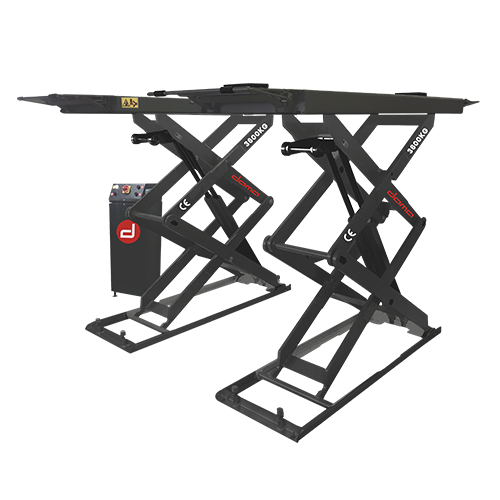

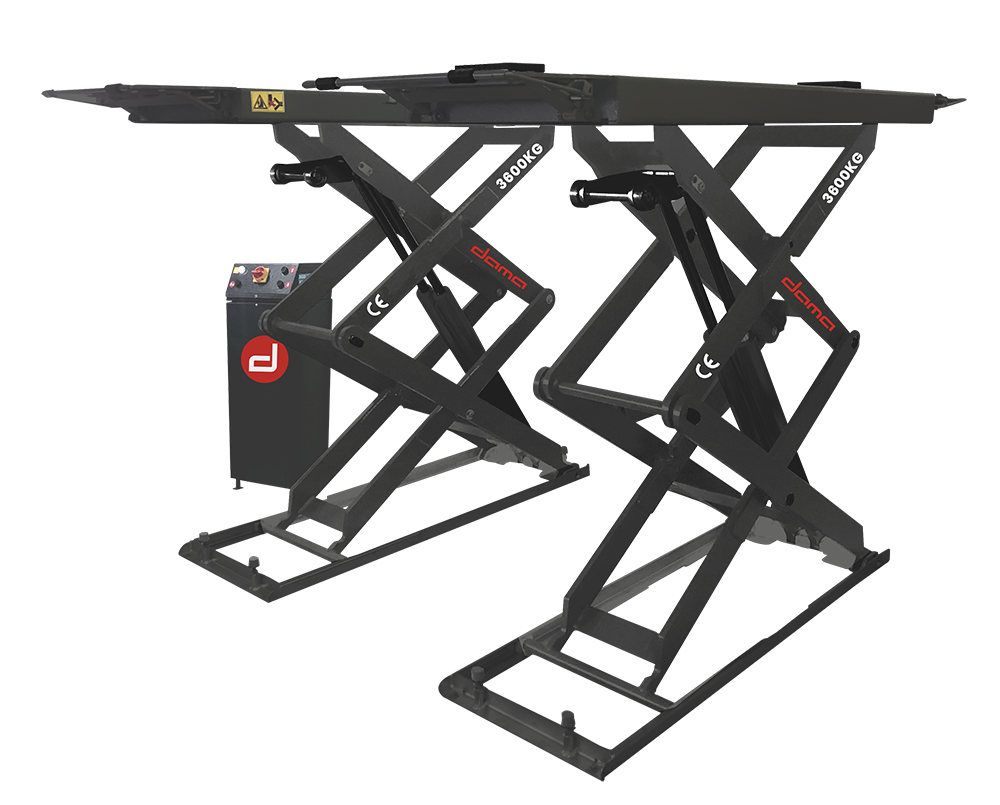

Dama HDM36PRO Scissor Lift

Dama HDM36PRO Scissor Lift

Dama HDM36PRO Scissor Lift

A high quality European manufactured electro-hydraulic 3.6 tonne scissor lift for surface installation, which lifts to a height of 2040mm.

Hydraulic locking by 2 independent circuits.

Only £3995.00 + VAT
P/No. : hdm36pro
QTY :
Lease From £21.67 Per Week
Click Here for Details

Features

  • Electro-hydraulic
  • Floor installation
  • High capacity 3600 kg
  • Max height 2,04 m
  • Quick Installation
  • No electrical whire in the lift platform
  • Automatic leveling
  • Hydraulic locking/2 indepedient hidraulic circuits
  • Anti toe trap function
  • Min height 110mm
  • Run on ramps can be locked in horizontal position

Technical Specification

Capacity 3600 Kg
Lifting Time 40 secs
Lowering Time 40 secs
Weight 800 Kg
Power Supply 3 KW / 400 V / 3 PH / 50 Hz
Warranty 14 Months

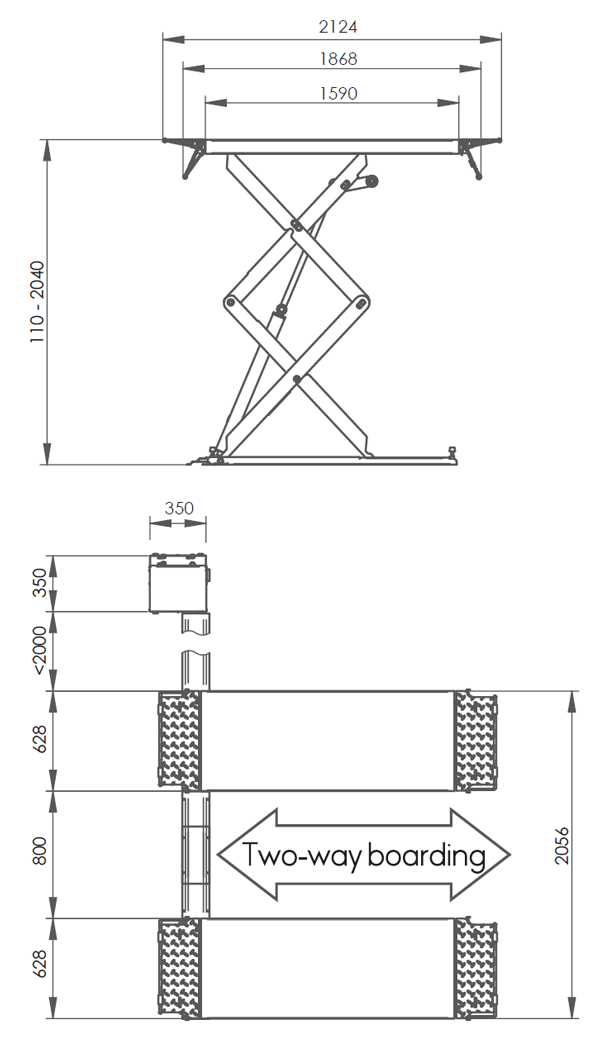

Drawings

Dama HDM36PRO Scissor Lift

Downloads

Dama Brochure

Call us now on 01823 328530 for more details
