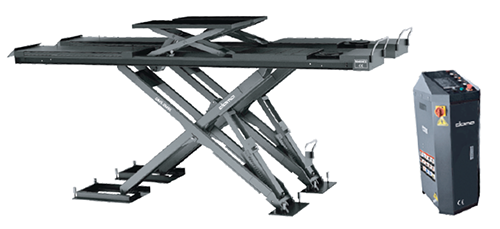

Dama HDM5.0MSE Double Scissor Lift
Dama HDM5.0MSE Double Scissor Lift
A recessed 5 tonne wheel alignment scissor with long 5100mm platforms is ideal for longer cars, vans & motorhomes. This lift has a large 5000kg lifting capacity, built in rear lockable slip plates recesses for turnplates, the lift is equipped with locking to ensure it is level at all heights. Being recessed there is no difficulty getting any vehicle no matter how low, onto the lift. The lift features rails to carry a jacking beam as an option.
The HDM5.0MSE also additional benefit of an integral scissor lift to lift the vehicle wheel free once raised. The secondary lift has a capacity of 3500kg
Price includes delivery and installation.
Technical Specification
| Main Lifting Capacity | 5000Kg |
| Secondary Lifting Capacity | 3500Kg |
| Lifting range | 360mm - 2060mm |
| Main Platform Length | 5100mm |
| Lifting Time | 75 secs |
| Power Supply | 230V 1Ph 50Hz 2.2Kw |

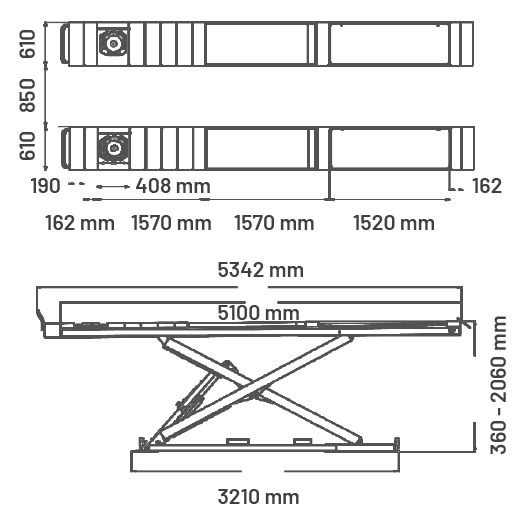

Drawings
Downloads
Call us now on 01823 328530 for more details
